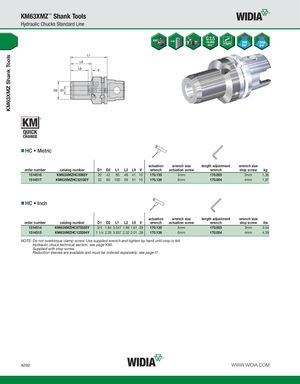

KM63XMZ Shank Tools KM63XMZ™ Shank Tools Hydraulic Chucks Standard Line HC • Metric actuation wrench size length adjustment wrench size order number catalog number D1 D2 L1 L2 L9 V wrench actuation screw wrench stop screw kg 1514516 KM63XMZHC2085Y 20 42 85 48 41 10 170.135 5mm 170.003 3mm 1,36 1514517 KM63XMZHC32100Y 32 60 100 59 51 10 170.136 6mm 170.004 4mm 1,97 HC • Inch actuation wrench size length adjustment wrench size order number catalog number D1 D2 L1 L2 L9 V wrench actuation screw wrench stop screw lbs 1514514 KM63XMZHC075335Y 3/4 1.64 3.347 1.89 1.61 .39 170.135 5mm 170.003 3mm 3.04 1514515 KM63XMZHC125394Y 1 1/4 2.35 3.937 2.32 2.01 .39 170.136 6mm 170.004 4mm 4.39 NOTE: Do not overtorque clamp screw. Use supplied wrench and tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Reduction sleeves are available and must be ordered separately; see page I7. A292 WWW.WIDIA.COM
