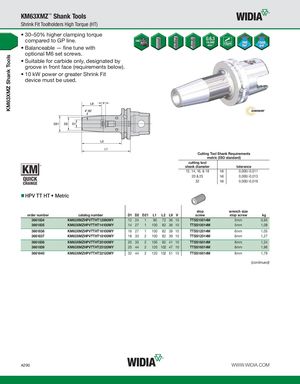

KM63XMZ Shank Tools KM63XMZ™ Shank Tools Shrink Fit Toolholders High Torque (HT) • 30–50% higher clamping torque compared to GP line. • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide only, designated by groove in front face (requirements below). • 10 kW power or greater Shrink Fit device must be used. Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 HPV TT HT • Metric stop wrench size order number catalog number D1 D2 D21 L1 L2 L9 V screw stop screw kg 3661834 KM63XMZHPVTTHT12090MY 12 24 1 90 72 36 10 TTSS10014M 5mm 0,95 3661835 KM63XMZHPVTTHT14100MY 14 27 1 100 82 36 10 TTSS10014M 5mm 1,08 3661836 KM63XMZHPVTTHT16100MY 16 27 1 100 82 39 10 TTSS12014M 6mm 1,05 3661837 KM63XMZHPVTTHT18100MY 18 33 2 100 82 39 10 TTSS12014M 6mm 1,27 3661838 KM63XMZHPVTTHT20100MY 20 33 2 100 82 41 10 TTSS16014M 8mm 1,24 3661839 KM63XMZHPVTTHT25120MY 25 44 2 120 102 47 10 TTSS16014M 8mm 1,96 3661840 KM63XMZHPVTTHT32120MY 32 44 2 120 102 51 10 TTSS16014M 8mm 1,79 (continued) A290 WWW.WIDIA.COM
