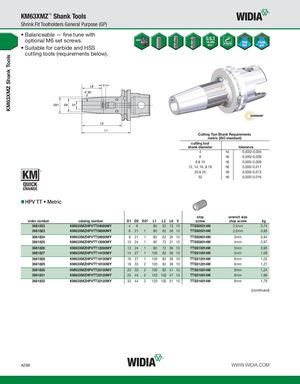

KM63XMZ Shank Tools KM63XMZ™ Shank Tools Shrink Fit Toolholders General Purpose (GP) • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide and HSS cutting tools (requirements below). Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 4 h4 0,000/-0,004 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 HPV TT • Metric stop wrench size order number catalog number D1 D2 D21 L1 L2 L9 V screw stop screw kg 3661833 KM63XMZHPVTT04080MY 4 9 80 52 15 10 TTSS05014M 2,5mm 0,74 3661823 KM63XMZHPVTT06080MY 6 21 1 80 62 26 10 TTSS05014M 2,5mm 0,85 3661824 KM63XMZHPVTT08080MY 8 21 1 80 62 26 10 TTSS06014M 3mm 0,84 3661825 KM63XMZHPVTT10090MY 10 24 1 90 72 31 10 TTSS08014M 4mm 0,97 3661826 KM63XMZHPVTT12090MY 12 24 1 90 72 36 10 TTSS10014M 5mm 0,95 3661827 KM63XMZHPVTT14100MY 14 27 1 100 82 36 10 TTSS10014M 5mm 1,08 3661828 KM63XMZHPVTT16100MY 16 27 1 100 82 39 10 TTSS12014M 6mm 1,05 3661829 KM63XMZHPVTT18100MY 18 33 2 100 82 39 10 TTSS12014M 6mm 1,27 3661830 KM63XMZHPVTT20100MY 20 33 2 100 82 41 10 TTSS16014M 8mm 1,24 3661831 KM63XMZHPVTT25120MY 25 44 2 120 102 47 10 TTSS16014M 8mm 1,96 3661832 KM63XMZHPVTT32120MY 32 44 2 120 102 51 10 TTSS16014M 8mm 1,79 (continued) A288 WWW.WIDIA.COM
