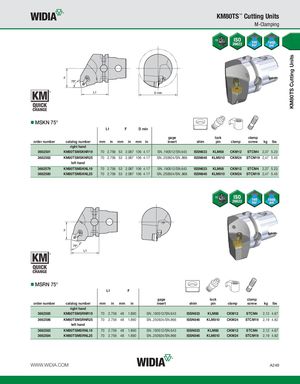

KM80TS Cutting Units KM80TS™ Cutting Units M-Clamping MSKN 75° L1 F D min gage lock clamp order number catalog number mm in mm in mm in insert shim pin clamp screw kg lbs right hand 3662581 KM80TSMSKNR19 70 2.756 53 2.087 106 4.17 SN..190512/SN.643 ISSN633 KLM68 CKM12 STCM4 2,37 5.23 3662582 KM80TSMSKNR25 70 2.756 53 2.087 106 4.17 SN..250924/SN..866 ISSN846 KLM810 CKM24 STCM19 2,47 5.45 left hand 3662579 KM80TSMSKNL19 70 2.756 53 2.087 106 4.17 SN..190512/SN.643 ISSN633 KLM68 CKM12 STCM4 2,37 5.23 3662580 KM80TSMSKNL25 70 2.756 53 2.087 106 4.17 SN..250924/SN..866 ISSN846 KLM810 CKM24 STCM19 2,47 5.45 MSRN 75° L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs right hand 3662585 KM80TSMSRNR19 70 2.756 48 1.890 SN..190512/SN.643 ISSN633 KLM68 CKM12 STCM4 2,12 4.67 3662586 KM80TSMSRNR25 70 2.756 48 1.890 SN..250924/SN.866 ISSN846 KLM810 CKM24 STCM19 2,19 4.82 left hand 3662583 KM80TSMSRNL19 70 2.756 48 1.890 SN..190512/SN.643 ISSN633 KLM68 CKM12 STCM4 2,12 4.67 3662584 KM80TSMSRNL25 70 2.756 48 1.890 SN..250924/SN.866 ISSN846 KLM810 CKM24 STCM19 2,19 4.82 WWW.WIDIA.COM A249
