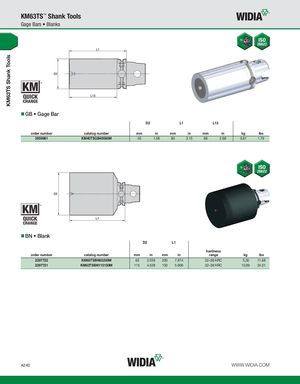

KM63TS Shank Tools KM63TS™ Shank Tools Gage Bars • Blanks GB • Gage Bar D2 L1 L13 order number catalog number mm in mm in mm in kg lbs 3959981 KM40TSGB40080M 40 1.58 80 3.15 68 2.68 0,81 1.79 BN • Blank D2 L1 hardness order number catalog number mm in mm in range kg lbs 2397722 KM63TSBN65200M 65 2.559 200 7.874 32–38 HRC 5,30 11.68 2397721 KM63TSBN115150M 115 4.528 150 5.906 32–38 HRC 10,89 24.01 A240 WWW.WIDIA.COM
