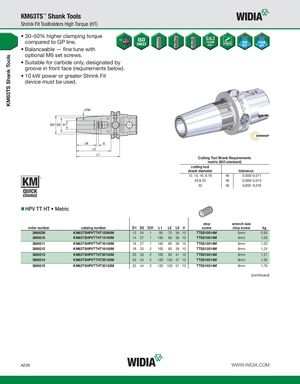

KM63TS Shank Tools KM63TS™ Shank Tools Shrink Fit Toolholders High Torque (HT) • 30–50% higher clamping torque compared to GP line. • Balanceable — fine tune with optional M6 set screws. • Suitable for carbide only, designated by groove in front face (requirements below). • 10 kW power or greater Shrink Fit device must be used. Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000 -0,016 HPV TT HT • Metric stop wrench size order number catalog number D1 D2 D21 L1 L2 L9 V screw stop screw kg 3869209 KM63TSHPVTTHT12090M 12 24 1 90 70 36 10 TTSS10014M 5mm 0,93 3869210 KM63TSHPVTTHT14100M 14 27 1 100 80 36 10 TTSS10014M 5mm 1,05 3869211 KM63TSHPVTTHT16100M 16 27 1 100 80 39 10 TTSS12014M 6mm 1,03 3869212 KM63TSHPVTTHT18100M 18 33 2 100 80 39 10 TTSS12014M 6mm 1,24 3869213 KM63TSHPVTTHT20100M 20 33 2 100 80 41 10 TTSS16014M 8mm 1,21 3869214 KM63TSHPVTTHT25120M 25 44 2 120 100 47 10 TTSS16014M 8mm 1,92 3869215 KM63TSHPVTTHT32120M 32 44 2 120 100 51 10 TTSS16014M 8mm 1,76 (continued) A226 WWW.WIDIA.COM
