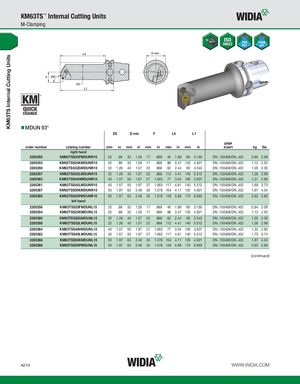

KM63TS Internal Cutting Units KM63TS™ Internal Cutting Units M-Clamping MDUN 93° D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 2265355 KM63TSS25FMDUNR15 25 .98 32 1.26 17 .669 45 1.99 80 3.150 DN..150408/DN..432 0,95 2.09 2265353 KM63TSS25KMDUNR15 25 .98 32 1.26 17 .669 88 3.47 125 4.921 DN..150408/DN..432 1,13 2.50 2265359 KM63TSS32GMDUNR15 32 1.26 40 1.57 22 .866 62 2.44 90 3.543 DN..150408/DN..432 1,05 2.30 2265357 KM63TSS32LMDUNR15 32 1.26 40 1.57 22 .866 112 4.41 140 5.512 DN..150408/DN..432 1,36 2.99 2265363 KM63TSS40HMDUNR15 40 1.57 50 1.97 27 1.063 77 3.04 100 3.937 DN..150408/DN..432 1,31 2.89 2265361 KM63TSS40LMDUNR15 40 1.57 50 1.97 27 1.063 117 4.61 140 5.512 DN..150408/DN..432 1,69 3.73 2265367 KM63TSS50KMDUNR15 50 1.97 63 2.48 35 1.378 104 4.11 125 4.921 DN..150408/DN..432 1,97 4.34 2265365 KM63TSS50PMDUNR15 50 1.97 63 2.48 35 1.378 149 5.88 170 6.693 DN..150408/DN..432 2,63 5.80 left hand 2265356 KM63TSS25FMDUNL15 25 .98 32 1.26 17 .669 45 1.99 80 3.150 DN..150408/DN..432 0,94 2.08 2265354 KM63TSS25KMDUNL15 25 .98 32 1.26 17 .669 88 3.47 125 4.921 DN..150408/DN..432 1,13 2.50 2265360 KM63TSS32GMDUNL15 32 1.26 40 1.57 22 .866 62 2.44 90 3.543 DN..150408/DN..432 1,05 2.30 2265358 KM63TSS32LMDUNL15 32 1.26 40 1.57 22 .866 112 4.41 140 5.512 DN..150408/DN..432 1,36 2.99 2265364 KM63TSS40HMDUNL15 40 1.57 50 1.97 27 1.063 77 3.04 100 3.937 DN..150408/DN..432 1,32 2.90 2265362 KM63TSS40LMDUNL15 40 1.57 50 1.97 27 1.063 117 4.61 140 5.512 DN..150408/DN..432 1,70 3.74 2265368 KM63TSS50KMDUNL15 50 1.97 63 2.48 35 1.378 104 4.11 125 4.921 DN..150408/DN..432 1,97 4.34 2265366 KM63TSS50PMDUNL15 50 1.97 63 2.48 35 1.378 149 5.88 170 6.693 DN..150408/DN..432 2,63 5.80 (continued) A214 WWW.WIDIA.COM
