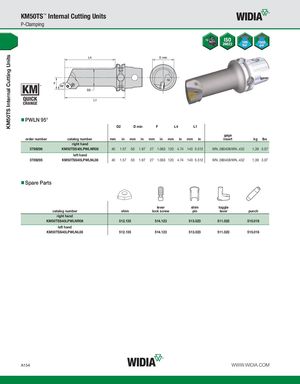

KM50TS Internal Cutting Units KM50TS™ Internal Cutting Units P-Clamping PWLN 95° D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 3789296 KM50TSS40LPWLNR08 40 1.57 50 1.97 27 1.063 120 4.74 140 5.512 WN..080408/WN..432 1,39 3.07 left hand 3789295 KM50TSS40LPWLNL08 40 1.57 50 1.97 27 1.063 120 4.74 140 5.512 WN..080408/WN..432 1,39 3.07 Spare Parts lever shim toggle catalog number shim lock screw pin lever punch right hand KM50TSS40LPWLNR08 512.135 514.123 513.023 511.023 515.018 left hand KM50TSS40LPWLNL08 512.135 514.123 513.023 511.023 515.018 A154 WWW.WIDIA.COM
