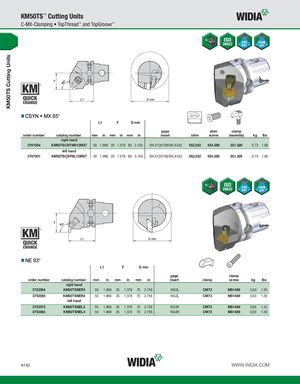

KM50TS Cutting Units KM50TS™ Cutting Units C-MX-Clamping • TopThread™ and TopGroove™ CSYN • MX 85° L1 F D min gage shim clamp order number catalog number mm in mm in mm in insert shim screw assembly kg lbs right hand 3747004 KM50TSCSYNR12MX7 50 1.969 35 1.378 80 3.150 SN.X120708/SN.X452 552.232 554.260 551.326 0,73 1.60 left hand 3747001 KM50TSCSYNL12MX7 50 1.969 35 1.378 80 3.150 SN.X120708/SN.X452 552.232 554.260 551.326 0,73 1.60 NE 93° L1 F D min gage clamp order number catalog number mm in mm in mm in insert clamp screw kg lbs right hand 3753584 KM50TSNER3 50 1.969 35 1.378 70 2.756 NG3L CM73 MS1489 0,63 1.39 3753585 KM50TSNER4 50 1.969 35 1.378 70 2.756 NG4L CM73 MS1489 0,63 1.39 left hand 3753572 KM50TSNEL3 50 1.969 35 1.378 70 2.756 NG3R CM72 MS1489 0,65 1.42 3753583 KM50TSNEL4 50 1.969 35 1.378 70 2.756 NG4R CM72 MS1489 0,63 1.39 A142 WWW.WIDIA.COM
