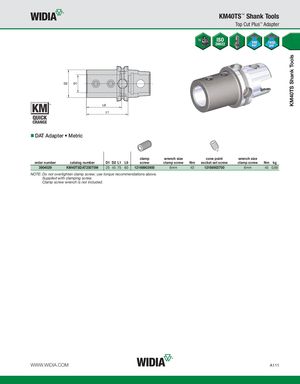

KM40TS Shank Tools KM40TS™ Shank Tools Top Cut Plus™ Adapter DAT Adapter • Metric clamp wrench size cone point wrench size order number catalog number D1 D2 L1 L9 screw clamp screw Nm socket set screw clamp screw Nm kg 3904029 KM40TSDAT25075M 25 45 75 60 12166903900 6mm 40 12166903700 6mm 40 0,69 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamping screw. Clamp screw wrench is not included. WWW.WIDIA.COM A111
