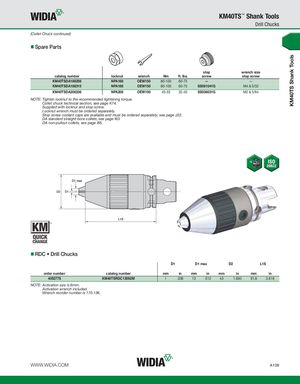

KM40TS Shank Tools KM40TS™ Shank Tools Drill Chucks (Collet Chuck continued) Spare Parts stop wrench size catalog number locknut wrench Nm ft. lbs. screw stop screw KM40TSDA188256 NPA188 OEW150 80-100 60-75 — — KM40TSDA188315 NPA188 OEW150 80-100 60-75 SS081041G M4 & 5/32 KM40TSDA208236 NPA208 OEW100 45-55 32-40 SS038031G M2 & 5/64 NOTE: Tighten locknut to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Stop screw coolant caps are available and must be ordered separately; see page J22. DA standard straight-bore collets, see page I63. DA non-pullout collets, see page I65. RDC • Drill Chucks D1 D1 max D2 L1S order number catalog number mm in mm in mm in mm in 4053778 KM40TSRDC13092M 1 .039 13 .512 43 1.693 91,9 3.618 NOTE: Activation size is 6mm. Activation wrench included. Wrench reorder number is 170.136. WWW.WIDIA.COM A109
