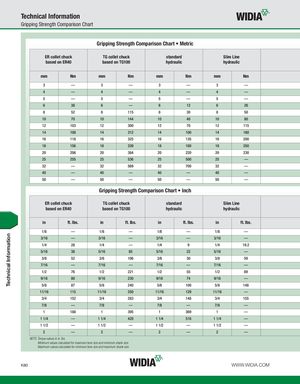

Gripping Strength Comparison Chart
Gripping Strength Comparison Chart • Metric
| ER collet based o | chuck n ER40 | TG colle based o | t chuck n TG100 | stan hydr | dard aulic | Slim hydr | Line aulic |
| mm | Nm | mm | Nm | mm | Nm | mm | Nm |
| 3 | — | 3 | — | 3 | — | 3 | — |
| 4 | — | 4 | — | 4 | — | 4 | — |
| 5 | — | 5 | — | 5 | — | 5 | — |
| 6 | 38 | 6 | — | 6 | 12 | 6 | 26 |
| 8 | 52 | 8 | 115 | 8 | 30 | 8 | 50 |
| 10 | 70 | 10 | 144 | 10 | 40 | 10 | 80 |
| 12 | 103 | 12 | 300 | 12 | 70 | 12 | 115 |
| 14 | 108 | 14 | 312 | 14 | 100 | 14 | 160 |
| 16 | 118 | 16 | 325 | 16 | 135 | 16 | 200 |
| 18 | 156 | 18 | 339 | 18 | 180 | 18 | 250 |
| 20 | 206 | 20 | 384 | 20 | 220 | 20 | 230 |
| 25 | 255 | 25 | 536 | 25 | 500 | 25 | — |
| 32 | — | 32 | 569 | 32 | 700 | 32 | — |
| 40 | — | 40 | — | 40 | — | 40 | — |
| 50 | — | 50 | — | 50 | — | 50 | — |
Gripping Strength Comparison Chart • Inch
| ER colle based o | t chuck n ER40 | TG coll based o | et chuck n TG100 | stan hydr | dard aulic | Slim hydr | Line aulic |
| in | ft. lbs. | in | ft. lbs. | in | ft. lbs. | in | ft. lbs. |
| 1/8 | — | 1/8 | — | 1/8 | — | 1/8 | — |
| 3/16 | — | 3/16 | — | 3/16 | — | 3/16 | — |
| 1/4 | 28 | 1/4 | — | 1/4 | 9 | 1/4 | 19.2 |
| 5/16 | 38 | 5/16 | 85 | 5/16 | 22 | 5/16 | — |
| 3/8 | 52 | 3/8 | 106 | 3/8 | 30 | 3/8 | 59 |
| 7/16 | — | 7/16 | — | 7/16 | — | 7/16 | — |
| 1/2 | 76 | 1/2 | 221 | 1/2 | 55 | 1/2 | 89 |
| 9/16 | 80 | 9/16 | 230 | 9/16 | 74 | 9/16 | — |
| 5/8 | 87 | 5/8 | 240 | 5/8 | 100 | 5/8 | 148 |
| 11/16 | 115 | 11/16 | 250 | 11/16 | 129 | 11/16 | — |
| 3/4 | 152 | 3/4 | 283 | 3/4 | 148 | 3/4 | 155 |
| 7/8 | — | 7/8 | — | 7/8 | — | 7/8 | — |
| 1 | 188 | 1 | 395 | 1 | 369 | 1 | — |
| 1 1/4 | — | 1 1/4 | 420 | 1 1/4 | 516 | 1 1/4 | — |
| 1 1/2 | — | 1 1/2 | — | 1 1/2 | — | 1 1/2 | — |
| 2 | — | 2 | — | 2 | — | 2 | — |
NOTE: Torque values in in. lbs. Minimum values calculated for maximum bore size and minimum shank size. Maximum values calculated for minimum bore size and maximum shank size.
