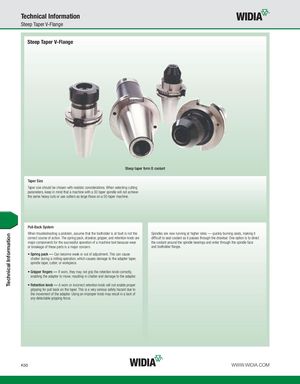

Technical Information Steep Taper V-Flange Steep Taper V-Flange Steep taper form B coolant Taper Size Taper size should be chosen with realistic considerations. When selecting cutting parameters, keep in mind that a machine with a 30 taper spindle will not achieve the same heavy cuts or use cutters as large those on a 50 taper machine. Pull-Back System When troubleshooting a problem, assume that the toolholder is at fault is not the Spindles are now running at higher rates — quickly burning seals, making it correct course of action. The spring pack, drawbar, gripper, and retention knob are difficult to seal coolant as it passes through the drawbar. One option is to direct major components for the successful operation of a machine tool because wear the coolant around the spindle bearings and enter through the spindle face or breakage of these parts is a major concern. and toolholder flange. • Spring pack — Can become weak or out of adjustment. This can cause chatter during a milling operation, which causes damage to the adapter taper, spindle taper, cutter, or workpiece. • Gripper fingers — If worn, they may not grip the retention knob correctly, enabling the adapter to move, resulting in chatter and damage to the adapter. • Retention knob — A worn or incorrect retention knob will not enable proper gripping for pull back on the taper. This is a very serious safety hazard due to the movement of the adapter. Using an improper knob may result in a lack of any detectable gripping force. K50 WWW.WIDIA.COM Technical Information
