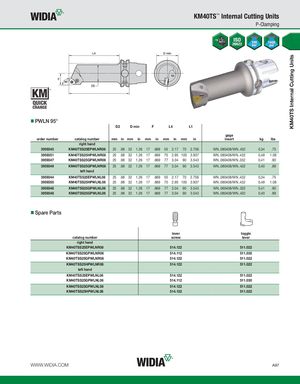

KM40TS Internal Cutting Units KM40TS™ Internal Cutting Units P-Clamping PWLN 95° D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 3959345 KM40TSS25EPWLNR08 25 .98 32 1.26 17 .669 55 2.17 70 2.756 WN..080408/WN..432 0,34 .75 3959351 KM40TSS25HPWLNR08 25 .98 32 1.26 17 .669 75 2.95 100 3.937 WN..080408/WN..432 0,49 1.08 3959347 KM40TSS25GPWLNR06 25 .98 32 1.26 17 .669 77 3.04 90 3.543 WN..060408/WN..332 0,41 .90 3959349 KM40TSS25GPWLNR08 25 .98 32 1.26 17 .669 77 3.04 90 3.543 WN..080408/WN..432 0,40 .89 left hand 3959344 KM40TSS25EPWLNL08 25 .98 32 1.26 17 .669 55 2.17 70 2.756 WN..080408/WN..432 0,34 .75 3959350 KM40TSS25HPWLNL08 25 .98 32 1.26 17 .669 75 2.95 100 3.937 WN..080408/WN..432 0,49 1.08 3959346 KM40TSS25GPWLNL06 25 .98 32 1.26 17 .669 77 3.04 90 3.543 WN..060408/WN..332 0,41 .90 3959348 KM40TSS25GPWLNL08 25 .98 32 1.26 17 .669 77 3.04 90 3.543 WN..080408/WN..432 0,40 .89 Spare Parts lever toggle catalog number screw lever right hand KM40TSS25EPWLNR08 514.122 511.022 KM40TSS25GPWLNR06 514.112 511.030 KM40TSS25GPWLNR08 514.122 511.022 KM40TSS25HPWLNR08 514.122 511.022 left hand KM40TSS25EPWLNL08 514.122 511.022 KM40TSS25GPWLNL06 514.112 511.030 KM40TSS25GPWLNL08 514.122 511.022 KM40TSS25HPWLNL08 514.122 511.022 WWW.WIDIA.COM A97
