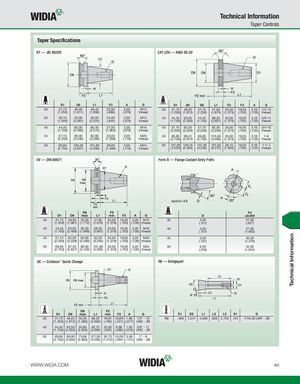

Taper Controls
Taper Specifications
BT — JIS B6339 CAT (CV) — ANSI B5.50
| D1 | D6 | L1 | F3 | A | G | D1 | D6 | D8 | L1 | F2 | F3 | A | G | ||
| 30 | 31,75 | 46,00 | 48,40 | 22,00 | 2,00 | M12 | 30 | 31,75 | 46,02 | 31,75 | 47,63 | 35,00 | 19,05 | 3,18 | 1/2-13 |
| (1.250) | (1.811) | (1.906) | (.866) | (.079) | thread | (1.250) | (1.812) | (1.250) | (1.875) | (1.375) | (.750) | (.125) | thread | ||
| 35 | 38,10 | 53,00 | 56,50 | 24,00 | 2,00 | M12 | 40 | 44,45 | 63,05 | 44,45 | 68,25 | 35,00 | 19,05 | 3,18 | 5/8-11 |
| (1.500) | (2.087) | (2.224) | (.945) | (.079) | thread | (1.750) | (2.500) | (1.750) | (2.687) | (1.375) | (.750) | (.125) | thread | ||
| 40 | 44,45 | 63,00 | 65,40 | 27,00 | 2,00 | M16 | 45 | 57,15 | 82,50 | 57,15 | 82,55 | 35,00 | 19,05 | 3,18 | 3/4-10 |
| (1.750) | (2.480) | (2.575) | (1.063) | (.079) | thread | (2.250) | (3.250) | (2.250) | (3.250) | (1.375) | (.750) | (.125) | thread | ||
| 45 | 57,15 | 85,00 | 82,80 | 33,00 | 3,00 | M20 | 50 | 69,85 | 98,41 | 69,85 | 101,60 | 35,00 | 19,05 | 3,18 | 1-8 |
| (2.250) | (3.346) | (3.260) | (1.299) | (.118) | thread | (2.750) | (3.875) | (2.750) | (4.000) | (1.375) | (.750) | (.125) | thread | ||
| 50 | 69,85 | 100,00 | 101,80 | 38,00 | 3,00 | M24 | 60 | 107,95 | 139,70 | 107,95 | 161,93 | 38,10 | 19,05 | 3,18 | 1 1/-7 |
| (2.750) | (3.937) | (4.008) | (1.496) | (.118) | thread | (4.250) | (5.500) | (4.250) | (6.375) | (1.500) | (.750) | (.125) | thread |
DV — DIN 69871 Form B — Flange Coolant Entry Ports
section AA
D8 F2 F4
| D1 | D6 | max | L1 | min | F3 | A | G | D | ±0.004 | ||
| 30 | 31,75 | 49,95 | 45,00 | 47,65 | 35,00 | 19,05 | 3,20 | M12 | 30 | 4,00 | 21,00 |
| (1.250) | (1.967) | (1.772) | (1.876) | (1.378) | (.750) | (.126) | thread | (.157) | (.827) | ||
| 40 | 44,45 | 63,00 | 50,00 | 68,25 | 35,00 | 19,05 | 3,20 | M16 | 40 | 4,00 | 27,00 |
| (1.750) | (2.480) | (1.969) | (2.687) | (1.378) | (.750) | (.126) | thread | (.157) | (1.063) | ||
| 45 | 57,15 | 82,00 | 63,00 | 82,55 | 35,00 | 19,05 | 3,20 | M20 | 45 | 5,00 | 35,00 |
| (2.250) | (3.228) | (2.480) | (3.250) | (1.378) | (.750) | (.126) | thread | (.197) | (1.378) | ||
| 50 | 69,85 | 97,45 | 80,00 | 101,60 | 35,00 | 19,05 | 3,20 | M24 | 50 | 6,00 | 42,00 |
| (2.750) | (3.827) | (3.150) | (4.000) | (1.378) | (.750) | (.126) | thread | (.236) | (1.654) |
QC — Erickson™ Quick Change R8 — Bridgeport
D8 F2
| D1 | D6 | max | L1 | min | F3 | A | G | D1 | D2 | L1 | L2 | L3 | G S1 | ||
| 30 | 31,75 | 46,03 | 35,05 | 68,33 | 19,81 | 10,69 | 1,96 | 1/2" - 13 | R8 .469 | 1.241 | 4.000 | .938 | 2.750 | 7/16-20 UNF - 2B .157 | |
| (1.250) | (1.812) | (1.380) | (2.690) | (.780) | (.421) | (.077) | UNC - 2B | ||||||||
| 40 | 44,45 | 63,50 | 50,80 | 93,73 | 20,83 | 9,88 | 1,93 | 5/8" - 11 | |||||||
| (1.750) | (2.500) | (2.000) | (3.690) | (.820) | (.389) | (.076) | UNC - 2B | ||||||||
| 50 | 69,85 | 88,90 | 73,66 | 127,00 | 30,73 | 15,09 | 3,58 | 1" - 8 | |||||||
| (2.750) | (3.500) | (2.900) | (5.000) | (1.210) | (.594) | (.141) | UNC - 2B |
