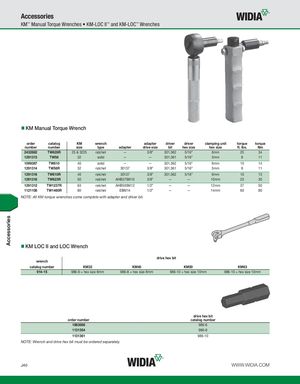

KM™ Manual Torque Wrenches • KM-LOC II™ and KM-LOC™ Wrenches
KM Manual Torque Wrench
| order number | catalog number | KM size | wrench type | adapter | adapter drive size | driver bit | driver hex size | clamping unit hex size | torque ft. lbs. | torque Nm |
| 2432682 | TW628R | 25 & 3225 | ratchet | — | 3/8" | 301.362 | 5/16" | 6mm | 25 | 34 |
| 1291313 | TW58 | 32 | solid | — | — | 301.361 | 5/16" | 5mm | 8 | 11 |
| 1099387 | TW610 | 40 | solid | — | — | 301.362 | 5/16" | 6mm | 10 | 14 |
| 1291314 | TW58R | 32 | ratchet | 30137 | 3/8" | 301.361 | 5/16" | 5mm | 8 | 11 |
| 1291316 | TW610R | 40 | ratchet | 30137 | 3/8" | 301.362 | 5/16" | 6mm | 10 | 13 |
| 1291318 | TW623R | 50 | ratchet | AHB375M10 | 3/8" | — | — | 10mm | 23 | 30 |
| 1291312 | TW1237R | 63 | ratchet | AHB500M12 | 1/2" | — | — | 12mm | 37 | 50 |
| 1121108 | TW1460R | 80 | ratchet | EBM14 | 1/2" | — | — | 14mm | 60 | 80 |
NOTE: All KM torque wrenches come complete with adapter and driver bit.
KM LOC II and LOC Wrench
drive hex bit wrench
catalog number KM32 KM40 KM50 KM63
914-15 986-6 = hex size 6mm 986-8 = hex size 8mm 986-10 = hex size 10mm 986-10 = hex size 10mm
drive hex bit order number catalog number 1863666 986-6 1131354 986-8 1131361 986-10 NOTE: Wrench and drive hex bit must be ordered separately.
