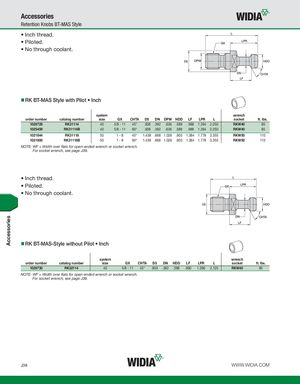

Retention Knobs BT-MAS Style
- Inch thread.
- Piloted.
- No through coolant.
RK BT-MAS Style with Pilot Inch
system wrench
| order number | catalog number | size | GX | CHTA | D5 | DN | DPW | HDD | LF | LPR | L | socket | ft. lbs. | ||
| 1026729 | RK31114 | 40 | 5/8 - 11 | 45° | .938 | .392 | .636 | .589 | .988 | 1.264 | 2.250 | RKW40 | 85 | ||
| 1025459 | RK31114B | 40 | 5/8 - 11 | 90° | .938 | .392 | .636 | .589 | .988 | 1.264 | 2.250 | RKW40 | 85 | ||
| 1021844 | RK31118 | 50 | 1 - 8 | 45° | 1.438 .668 1.026 | .903 | 1.384 | 1.778 | 3.355 | RKW50 | 110 | ||||
| 1021800 | RK31118B | 50 | 1 - 8 | 90° | 1.438 .668 1.026 | .903 | 1.384 | 1.778 | 3.355 | RKW50 | 110 |
NOTE: WF = Width over flats for open-ended wrench or socket wrench. For socket wrench, see page J39.
- Inch thread.
- Piloted.
- No through coolant.
RK BT-MAS-Style without Pilot Inch
system wrench
| order number | catalog number | size | GX | CHTA | D5 | DN | HDD | LF | LPR | L | socket | ft. lbs. | ||
| 1026730 | RK32114 | 40 | 5/8 - 11 | 45° | .903 | .392 | .588 | .990 | 1.266 | 2.125 | RKW40 | 85 |
NOTE: WF = Width over flats for open-ended wrench or socket wrench. For socket wrench, see page J39.
