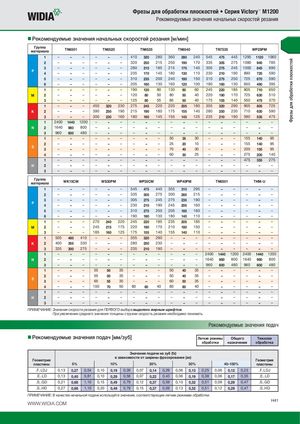

- Рекомендуемые значения начальных скоростей резания [м/мин]
| Гру матер | ппа иала | TN6501 | TN6520 | TN6525 | TN6540 | TN7535 | WP25PM | ||||||||||||
| 1 | – | – | – | – | – | – | 410 | 320 | 280 | 360 | 280 | 240 | 545 | 475 | 445 | 1295 | 1120 | 1060 | |
| 2 | – | – | – | – | – | – | 320 | 250 | 215 | 250 | 190 | 170 | 335 | 305 | 275 | 1080 | 940 | 785 | |
| 3 | – | – | – | – | – | – | 280 | 215 | 185 | 215 | 170 | 140 | 305 | 275 | 245 | 1000 | 845 | 690 | |
| P | 4 | – | – | – | – | – | – | 235 | 170 | 145 | 180 | 130 | 110 | 230 | 210 | 190 | 890 | 725 | 590 |
| 5 | – | – | – | – | – | – | 310 | 235 | 200 | 240 | 180 | 150 | 310 | 275 | 250 | 725 | 670 | 590 | |
| 6 | – | – | – | – | – | – | 205 | 160 | 130 | 160 | 120 | 100 | 190 | 160 | 130 | 650 | 490 | 395 | |
| 1 | – | – | – | – | – | – | 190 | 120 | 80 | 130 | 80 | 60 | 245 | 220 | 185 | 805 | 710 | 650 | |
| M | 2 | – | – | – | – | – | – | 120 | 80 | 50 | 80 | 50 | 40 | 220 | 190 | 170 | 725 | 630 | 510 |
| 3 | – | – | – | – | – | – | 125 | 80 | 55 | 85 | 50 | 40 | 175 | 155 | 140 | 550 | 475 | 370 | |
| 1 | – | – | – | 450 | 320 | 230 | 275 | 245 | 220 | 220 | 205 | 180 | 355 | 320 | 290 | 905 | 805 | 725 | |
| K | 2 | – | – | – | 390 | 250 | 190 | 215 | 190 | 180 | 175 | 155 | 140 | 280 | 250 | 230 | 710 | 630 | 590 |
| 3 | – | – | – | 300 | 230 | 160 | 180 | 160 | 145 | 155 | 145 | 125 | 235 | 210 | 190 | 590 | 535 | 475 | |
| 1 | 2400 | 1440 | 1200 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| N | 2 | 1640 | 980 | 800 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | 960 | 600 | 480 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 1 | – | – | – | – | – | – | – | – | – | 50 | 35 | 30 | – | – | – | 155 | 140 | 95 | |
| 2 | – | – | – | – | – | – | – | – | – | 25 | 20 | 10 | – | – | – | 155 | 140 | 95 | |
| S | 3 | – | – | – | – | – | – | – | – | – | 70 | 40 | 30 | – | – | – | 200 | 155 | 95 |
| 4 | – | – | – | – | – | – | – | – | – | 60 | 30 | 25 | – | – | – | 275 | 200 | 140 | |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 475 | 355 | 275 | |
| H | 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| Гру мате | ппа иала | WK15CM | WS30PM | WP35C | M | WP40P | M | TN6501 | THM-U | ||||||||||
| 1 | – | – | – | – | – | – | 545 | 475 | 445 | 355 | 310 | 295 | – | – | – | – | – | – | |
| 2 | – | – | – | – | – | – | 335 | 305 | 275 | 300 | 260 | 215 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | 305 | 275 | 245 | 275 | 235 | 190 | – | – | – | – | – | – | |
| P | 4 | – | – | – | – | – | – | 230 | 210 | 190 | 245 | 205 | 160 | – | – | – | – | – | – |
| 5 | – | – | – | – | – | – | 310 | 275 | 250 | 205 | 185 | 160 | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | 190 | 160 | 130 | 180 | 140 | 110 | – | – | – | – | – | – | |
| 1 | – | – | – | 270 | 240 | 220 | 245 | 220 | 185 | 235 | 205 | 185 | – | – | – | – | – | – | |
| M | 2 | – | – | – | 245 | 215 | 175 | 220 | 190 | 170 | 210 | 180 | 150 | – | – | – | – | – | – |
| 3 | – | – | – | 185 | 160 | 125 | 175 | 155 | 140 | 155 | 140 | 110 | – | – | – | – | – | – | |
| 1 | 505 | 460 | 410 | – | – | – | 355 | 320 | 290 | – | – | – | – | – | – | – | – | – | |
| K | 2 | 400 | 355 | 330 | – | – | – | 280 | 250 | 230 | – | – | – | – | – | – | – | – | – |
| 3 | 335 | 300 | 275 | – | – | – | 235 | 210 | 190 | – | – | – | – | – | – | – | – | – | |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | 2400 | 1440 | 1200 | 2400 | 1440 | 1200 | |
| N | 2 | – | – | – | – | – | – | – | – | – | – | – | – | 1640 | 980 | 800 | 1640 | 980 | 800 |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | 960 | 600 | 480 | 960 | 600 | 480 | |
| 1 | – | – | – | 55 | 50 | 35 | – | – | – | 50 | 40 | 35 | – | – | – | – | – | – | |
| 2 | – | – | – | 55 | 50 | 35 | – | – | – | 50 | 40 | 35 | – | – | – | – | – | – | |
| S | |||||||||||||||||||
| 3 | – | – | – | 65 | 55 | 35 | – | – | – | 60 | 50 | 35 | – | – | – | – | – | – | |
| 4 | – | – | – | 100 | 70 | 50 | 80 | 60 | 40 | 80 | 60 | 40 | – | – | – | – | – | – | |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
ПРИМЕЧАНИЕ: Значения скорости резания для ПЕРВОГО выбора выделено жирным шрифтом. При увеличении среднего значения толщины стружки скорость резания необходимо понижать.
Рекомендуемые значения подач
| Рекомен Геометрия пластины | дуемы | е зна 5% | чения | пода | ч [мм в з 10% | /зуб] Зн ависимо | ачения сти от | подачи ширины 20% | на зуб ( фрезер | fz) ования | (ae) 30% | Легкие р обраб | ежимы отки | Общ назна 40–100% | его чения | Тяжелая обработка Геометрия пластины |
| .F..LDJ | 0,13 | 0,27 | 0,54 | 0,10 | 0,19 | 0,39 | 0,07 | 0,14 | 0,29 | 0,06 | 0,13 | 0,25 | 0,06 | 0,12 | 0,23 | .F..LDJ |
| .E..LD | 0,13 | 0,40 | 0,81 | 0,10 | 0,29 | 0,58 | 0,07 | 0,22 | 0,43 | 0,06 | 0,19 | 0,38 | 0,06 | 0,17 | 0,35 | .E..LD |
| .S..GD | 0,21 | 0,68 | 1,10 | 0,15 | 0,49 | 0,79 | 0,12 | 0,37 | 0,59 | 0,10 | 0,32 | 0,51 | 0,09 | 0,29 | 0,47 | .S..GD |
| .S..HD | 0,27 | 0,68 | 1,10 | 0,20 | 0,49 | 0,79 | 0,15 | 0,37 | 0,59 | 0,13 | 0,32 | 0,51 | 0,12 | 0,29 | 0,47 | .S..HD |
