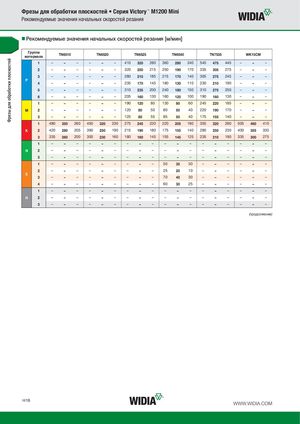

Рекомендуемые значения начальных скоростей резания [м/мин]
| Группа материала | TN6510 | TN6520 | TN6525 | TN6540 | TN7535 | WK15C | M | |||||||||||
| 1 | – | – | – | – | – | – | 410 | 320 | 280 | 360 | 280 | 240 | 545 | 475 | 445 | – | – | – |
| 2 | – | – | – | – | – | – | 320 | 250 | 215 | 250 | 190 | 170 | 335 | 305 | 275 | – | – | – |
| 3 | – | – | – | – | – | – | 280 | 215 | 185 | 215 | 170 | 140 | 305 | 275 | 245 | – | – | – |
| P 4 | – | – | – | – | – | – | 235 | 170 | 145 | 180 | 130 | 110 | 230 | 210 | 190 | – | – | – |
| 5 | – | – | – | – | – | – | 310 | 235 | 200 | 240 | 180 | 150 | 310 | 275 | 250 | – | – | – |
| 6 | – | – | – | – | – | – | 205 | 160 | 130 | 160 | 120 | 100 | 190 | 160 | 130 | – | – | – |
| 1 | – | – | – | – | – | – | 190 | 120 | 80 | 130 | 80 | 60 | 245 | 220 | 185 | – | – | – |
| M 2 | – | – | – | – | – | – | 120 | 80 | 50 | 80 | 50 | 40 | 220 | 190 | 170 | – | – | – |
| 3 | – | – | – | – | – | – | 125 | 80 | 55 | 85 | 50 | 40 | 175 | 155 | 140 | – | – | – |
| 1 | 480 | 350 | 260 | 450 | 320 | 230 | 275 | 245 | 220 | 220 | 205 | 180 | 355 | 320 | 290 | 505 | 460 | 410 |
| K 2 | 420 | 280 | 205 | 390 | 250 | 190 | 215 | 190 | 180 | 175 | 155 | 140 | 280 | 250 | 230 | 400 | 355 | 330 |
| 3 | 335 | 260 | 200 | 300 | 230 | 160 | 180 | 160 | 145 | 155 | 145 | 125 | 235 | 210 | 190 | 335 | 300 | 275 |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| N 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 1 | – | – | – | – | – | – | – | – | – | 50 | 35 | 30 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | 25 | 20 | 10 | – | – | – | – | – | – |
| S 3 | – | – | – | – | – | – | – | – | – | 70 | 40 | 30 | – | – | – | – | – | – |
| 4 | – | – | – | – | – | – | – | – | – | 60 | 30 | 25 | – | – | – | – | – | – |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| H 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
(продолжение)
