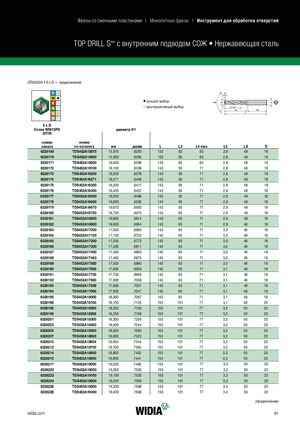

TOP DRILL S™ с внутренним подводом СОЖ • Нержавеющая сталь
(TDS452A • 5 x D — продолжение)
| v лу | чший выбор | ||||||||
| j ал | ьтернативны | й выбор | L4 m | ax | |||||
| 5 x D Сплав WM15PD AlTiN | диаме | тр D1 | |||||||
| номер заказа | номер по каталогу | мм | дюйм | L | L3 | L4max | L5 | LS | D |
| 6328169 | TDS452A15875 | 15,875 | .6250 | 133 | 83 | 63 | 2,8 | 48 | 16 |
| 6328170 | TDS452A15900 | 15,900 | .6260 | 133 | 83 | 63 | 2,8 | 48 | 16 |
| 6328171 | TDS452A16000 | 16,000 | .6299 | 133 | 83 | 63 | 2,8 | 48 | 16 |
| 6328172 | TDS452A16100 | 16,100 | .6339 | 143 | 93 | 71 | 2,8 | 48 | 18 |
| 6328173 | TDS452A16200 | 16,200 | .6378 | 143 | 93 | 71 | 2,8 | 48 | 18 |
| 6328174 | TDS452A16271 | 16,271 | .6406 | 143 | 93 | 71 | 2,8 | 48 | 18 |
| 6328175 | TDS452A16300 | 16,300 | .6417 | 143 | 93 | 71 | 2,8 | 48 | 18 |
| 6328176 | TDS452A16400 | 16,400 | .6457 | 143 | 93 | 71 | 2,8 | 48 | 18 |
| 6328177 | TDS452A16500 | 16,500 | .6496 | 143 | 93 | 71 | 2,9 | 48 | 18 |
| 6328178 | TDS452A16600 | 16,600 | .6535 | 143 | 93 | 71 | 2,9 | 48 | 18 |
| 6328179 | TDS452A16670 | 16,670 | .6563 | 143 | 93 | 71 | 2,9 | 48 | 18 |
| 6328180 | TDS452A16700 | 16,700 | .6575 | 143 | 93 | 71 | 2,9 | 48 | 18 |
| 6328181 | TDS452A16800 | 16,800 | .6614 | 143 | 93 | 71 | 2,9 | 48 | 18 |
| 6328182 | TDS452A16900 | 16,900 | .6654 | 143 | 93 | 71 | 2,9 | 48 | 18 |
| 6328183 | TDS452A17000 | 17,000 | .6693 | 143 | 93 | 71 | 3,0 | 48 | 18 |
| 6328184 | TDS452A17100 | 17,100 | .6732 | 143 | 93 | 71 | 3,0 | 48 | 18 |
| 6328185 | TDS452A17200 | 17,200 | .6772 | 143 | 93 | 71 | 3,0 | 48 | 18 |
| 6328186 | TDS452A17300 | 17,300 | .6811 | 143 | 93 | 71 | 3,0 | 48 | 18 |
| 6328187 | TDS452A17400 | 17,400 | .6850 | 143 | 93 | 71 | 3,0 | 48 | 18 |
| 6328188 | TDS452A17463 | 17,463 | .6875 | 143 | 93 | 71 | 3,0 | 48 | 18 |
| 6328189 | TDS452A17500 | 17,500 | .6890 | 143 | 93 | 71 | 3,0 | 48 | 18 |
| 6328190 | TDS452A17600 | 17,600 | .6929 | 143 | 93 | 71 | 3,1 | 48 | 18 |
| 6328191 | TDS452A17700 | 17,700 | .6969 | 143 | 93 | 71 | 3,1 | 48 | 18 |
| 6328192 | TDS452A17800 | 17,800 | .7008 | 143 | 93 | 71 | 3,1 | 48 | 18 |
| 6328193 | TDS452A17859 | 17,859 | .7031 | 143 | 93 | 71 | 3,1 | 48 | 18 |
| 6328194 | TDS452A17900 | 17,900 | .7047 | 143 | 93 | 71 | 3,1 | 48 | 18 |
| 6328195 | TDS452A18000 | 18,000 | .7087 | 143 | 93 | 71 | 3,1 | 48 | 18 |
| 6328196 | TDS452A18100 | 18,100 | .7126 | 153 | 101 | 77 | 3,1 | 50 | 20 |
| 6328198 | TDS452A18200 | 18,200 | .7165 | 153 | 101 | 77 | 3,2 | 50 | 20 |
| 6328199 | TDS452A18258 | 18,258 | .7188 | 153 | 101 | 77 | 3,2 | 50 | 20 |
| 6328201 | TDS452A18300 | 18,300 | .7205 | 153 | 101 | 77 | 3,2 | 50 | 20 |
| 6328203 | TDS452A18400 | 18,400 | .7244 | 153 | 101 | 77 | 3,2 | 50 | 20 |
| 6328205 | TDS452A18500 | 18,500 | .7283 | 153 | 101 | 77 | 3,2 | 50 | 20 |
| 6328207 | TDS452A18600 | 18,600 | .7323 | 153 | 101 | 77 | 3,2 | 50 | 20 |
| 6328210 | TDS452A18654 | 18,654 | .7344 | 153 | 101 | 77 | 3,2 | 50 | 20 |
| 6328212 | TDS452A18700 | 18,700 | .7362 | 153 | 101 | 77 | 3,3 | 50 | 20 |
| 6328214 | TDS452A18800 | 18,800 | .7402 | 153 | 101 | 77 | 3,3 | 50 | 20 |
| 6328215 | TDS452A18900 | 18,900 | .7441 | 153 | 101 | 77 | 3,3 | 50 | 20 |
| 6328217 | TDS452A19000 | 19,000 | .7480 | 153 | 101 | 77 | 3,3 | 50 | 20 |
| 6328220 | TDS452A19050 | 19,050 | .7500 | 153 | 101 | 77 | 3,3 | 50 | 20 |
| 6328222 | TDS452A19100 | 19,100 | .7520 | 153 | 101 | 77 | 3,3 | 50 | 20 |
| 6328224 | TDS452A19200 | 19,200 | .7559 | 153 | 101 | 77 | 3,3 | 50 | 20 |
| 6328226 | TDS452A19300 | 19,300 | .7598 | 153 | 101 | 77 | 3,4 | 50 | 20 |
| 6328228 | TDS452A19400 | 19,400 | .7638 | 153 | 101 | 77 | 3,4 | 50 | 20 |
