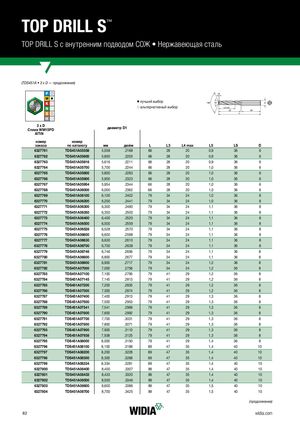

TOP DRILL S с внутренним подводом СОЖ • Нержавеющая сталь
(TDS451A • 3 x D — продолжение)
| v | лучший вы | бор | |||||||
| j | альтернати | вный выбор | L4 max | ||||||
| 3 x D С WM1PD | диаме | тр D1 | |||||||
| плав 5 AlTiND | WM15PD | WM | 15PD | ||||||
| номер | номер | ||||||||
| заказа | по каталогу | мм | дюйм | L | L3 | L4max | L5 | LS | D |
| 6327761 | TDS451A05558 | 5,558 | .2188 | 66 | 28 | 20 | 0,9 | 36 | 6 |
| 6327762 | TDS451A05600 | 5,600 | .2205 | 66 | 28 | 20 | 0,9 | 36 | 6 |
| 6327763 | TDS451A05616 | 5,616 | .2211 | 66 | 28 | 20 | 0,9 | 36 | 6 |
| 6327764 | TDS451A05700 | 5,700 | .2244 | 66 | 28 | 20 | 1,0 | 36 | 6 |
| 6327765 | TDS451A05800 | 5,800 | .2283 | 66 | 28 | 20 | 1,0 | 36 | 6 |
| 6327766 | TDS451A05900 | 5,900 | .2323 | 66 | 28 | 20 | 1,0 | 36 | 6 |
| 6327767 | TDS451A05954 | 5,954 | .2344 | 66 | 28 | 20 | 1,0 | 36 | 6 |
| 6327768 | TDS451A06000 | 6,000 | .2362 | 66 | 28 | 20 | 1,0 | 36 | 6 |
| 6327769 | TDS451A06100 | 6,100 | .2402 | 79 | 34 | 24 | 1,0 | 36 | 8 |
| 6327770 | TDS451A06200 | 6,200 | .2441 | 79 | 34 | 24 | 1,0 | 36 | 8 |
| 6327771 | TDS451A06300 | 6,300 | .2480 | 79 | 34 | 24 | 1,1 | 36 | 8 |
| 6327772 | TDS451A06350 | 6,350 | .2500 | 79 | 34 | 24 | 1,1 | 36 | 8 |
| 6327773 | TDS451A06400 | 6,400 | .2520 | 79 | 34 | 24 | 1,1 | 36 | 8 |
| 6327774 | TDS451A06500 | 6,500 | .2559 | 79 | 34 | 24 | 1,1 | 36 | 8 |
| 6327775 | TDS451A06528 | 6,528 | .2570 | 79 | 34 | 24 | 1,1 | 36 | 8 |
| 6327776 | TDS451A06600 | 6,600 | .2598 | 79 | 34 | 24 | 1,1 | 36 | 8 |
| 6327777 | TDS451A06630 | 6,630 | .2610 | 79 | 34 | 24 | 1,1 | 36 | 8 |
| 6327778 | TDS451A06700 | 6,700 | .2638 | 79 | 34 | 24 | 1,1 | 36 | 8 |
| 6327779 | TDS451A06746 | 6,746 | .2656 | 79 | 34 | 24 | 1,1 | 36 | 8 |
| 6327780 | TDS451A06800 | 6,800 | .2677 | 79 | 34 | 24 | 1,1 | 36 | 8 |
| 6327781 | TDS451A06900 | 6,900 | .2717 | 79 | 34 | 24 | 1,2 | 36 | 8 |
| 6327782 | TDS451A07000 | 7,000 | .2756 | 79 | 34 | 24 | 1,2 | 36 | 8 |
| 6327783 | TDS451A07100 | 7,100 | .2795 | 79 | 41 | 29 | 1,2 | 36 | 8 |
| 6327784 | TDS451A07145 | 7,145 | .2813 | 79 | 41 | 29 | 1,2 | 36 | 8 |
| 6327785 | TDS451A07200 | 7,200 | .2835 | 79 | 41 | 29 | 1,2 | 36 | 8 |
| 6327786 | TDS451A07300 | 7,300 | .2874 | 79 | 41 | 29 | 1,2 | 36 | 8 |
| 6327787 | TDS451A07400 | 7,400 | .2913 | 79 | 41 | 29 | 1,3 | 36 | 8 |
| 6327788 | TDS451A07500 | 7,500 | .2953 | 79 | 41 | 29 | 1,3 | 36 | 8 |
| 6327789 | TDS451A07541 | 7,541 | .2969 | 79 | 41 | 29 | 1,3 | 36 | 8 |
| 6327790 | TDS451A07600 | 7,600 | .2992 | 79 | 41 | 29 | 1,3 | 36 | 8 |
| 6327791 | TDS451A07700 | 7,700 | .3031 | 79 | 41 | 29 | 1,3 | 36 | 8 |
| 6327792 | TDS451A07800 | 7,800 | .3071 | 79 | 41 | 29 | 1,3 | 36 | 8 |
| 6327793 | TDS451A07900 | 7,900 | .3110 | 79 | 41 | 29 | 1,3 | 36 | 8 |
| 6327794 | TDS451A07938 | 7,938 | .3125 | 79 | 41 | 29 | 1,3 | 36 | 8 |
| 6327795 | TDS451A08000 | 8,000 | .3150 | 79 | 41 | 29 | 1,4 | 36 | 8 |
| 6327796 | TDS451A08100 | 8,100 | .3189 | 89 | 47 | 35 | 1,4 | 40 | 10 |
| 6327797 | TDS451A08200 | 8,200 | .3228 | 89 | 47 | 35 | 1,4 | 40 | 10 |
| 6327798 | TDS451A08300 | 8,300 | .3268 | 89 | 47 | 35 | 1,4 | 40 | 10 |
| 6327799 | TDS451A08334 | 8,334 | .3281 | 89 | 47 | 35 | 1,4 | 40 | 10 |
| 6327800 | TDS451A08400 | 8,400 | .3307 | 89 | 47 | 35 | 1,4 | 40 | 10 |
| 6327801 | TDS451A08433 | 8,433 | .3320 | 89 | 47 | 35 | 1,4 | 40 | 10 |
| 6327802 | TDS451A08500 | 8,500 | .3346 | 89 | 47 | 35 | 1,4 | 40 | 10 |
| 6327803 | TDS451A08600 | 8,600 | .3386 | 89 | 47 | 35 | 1,5 | 40 | 10 |
| 6327804 | TDS451A08700 | 8,700 | .3425 | 89 | 47 | 35 | 1,5 | 40 | 10 |
