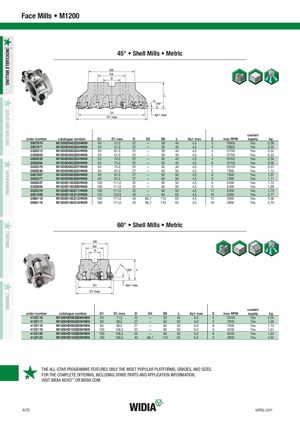

45° • Shell Mills • Metric
coolant
| order number | catalogue number | D1 | D1 max | D | D4 | D6 | L | Ap1 max | Z | max RPM | supply | kg |
| 3957970 | M1200D040Z03HN09 | 40 | 51,0 | 22 | — | 39 | 40 | 4,4 | 3 | 15800 | Yes | 0,26 |
| 3957971 | M1200D040Z04HN09 | 40 | 51,0 | 22 | — | 39 | 40 | 4,4 | 4 | 15800 | Yes | 0,25 |
| 3325312 | M1200D050Z04HN09 | 50 | 61,0 | 22 | — | 38 | 40 | 4,5 | 4 | 12700 | Yes | 0,32 |
| 3325693 | M1200D050Z05HN09 | 50 | 61,0 | 22 | — | 38 | 40 | 4,5 | 5 | 12700 | Yes | 0,33 |
| 3650535 | M1200D063Z04HN09 | 63 | 74,0 | 22 | — | 50 | 40 | 4,5 | 4 | 10100 | Yes | 0,59 |
| 3093594 | M1200D063Z06HN09 | 63 | 74,0 | 22 | — | 50 | 40 | 4,5 | 6 | 10100 | Yes | 0,56 |
| 3025376 | M1200D063Z07HN09 | 63 | 74,0 | 22 | — | 50 | 40 | 4,5 | 7 | 10100 | Yes | 0,57 |
| 3650536 | M1200D080Z05HN09 | 80 | 91,0 | 27 | — | 60 | 50 | 4,5 | 5 | 7900 | Yes | 1,12 |
| 3081507 | M1200D080Z06HN09 | 80 | 91,0 | 27 | — | 60 | 50 | 4,5 | 6 | 7900 | Yes | 1,07 |
| 3025377 | M1200D080Z09HN09 | 80 | 91,0 | 27 | — | 60 | 50 | 4,5 | 9 | 7900 | Yes | 1,11 |
| 3650537 | M1200D100Z06HN09 | 100 | 111,0 | 32 | — | 80 | 50 | 4,5 | 6 | 6300 | Yes | 1,73 |
| 3325694 | M1200D100Z08HN09 | 100 | 111,0 | 32 | — | 80 | 50 | 4,5 | 8 | 6300 | Yes | 1,68 |
| 3025378 | M1200D100Z11HN09 | 100 | 111,0 | 32 | — | 80 | 50 | 4,5 | 11 | 6300 | Yes | 1,73 |
| 3081508 | M1200D125Z10HN09 | 125 | 135,9 | 40 | — | 90 | 63 | 4,5 | 10 | 5050 | Yes | 2,77 |
| 3066118 | M1200D160Z12HN09 | 160 | 171,0 | 40 | 66,7 | 110 | 63 | 4,5 | 12 | 3900 | Yes | 4,56 |
| 3066119 | M1200D160Z16HN09 | 160 | 171,0 | 40 | 66,7 | 110 | 63 | 4,5 | 16 | 3900 | Yes | 4,70 |
60° • Shell Mills • Metric
coolant
| order number | catalogue number | D1 | D1 max | D | D4 | D6 | L | Ap1 max | Z | max RPM | supply | kg |
| 4152116 | M1200HD063Z06HN09 | 63 | 71,5 | 22 | — | 50 | 40 | 6,0 | 6 | 10100 | Yes | 0,55 |
| 4152117 | M1200HD080Z05HN09 | 80 | 88,5 | 27 | — | 60 | 50 | 6,0 | 5 | 7900 | Yes | 1,05 |
| 4152118 | M1200HD080Z08HN09 | 80 | 88,5 | 27 | — | 60 | 50 | 6,0 | 8 | 7900 | Yes | 1,10 |
| 4152119 | M1200HD100Z06HN09 | 100 | 108,5 | 32 | — | 80 | 50 | 6,0 | 6 | 6300 | Yes | 1,61 |
| 4152120 | M1200HD100Z08HN09 | 100 | 108,5 | 32 | — | 80 | 50 | 6,0 | 8 | 6300 | Yes | 1,63 |
| 4152123 | M1200HD160Z09HN09 | 160 | 168,5 | 40 | 66,7 | 110 | 63 | 6,0 | 9 | 3900 | Yes | 4,62 |
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, INCLUDING SPARE PARTS AND APPLICATION INFORMATION, VISIT WIDIA NOVO™ OR WIDIA.COM.
