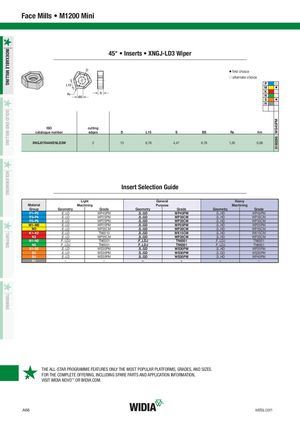

45° • Inserts • XNGJ-LD3 Wiper
v first choice j alternate choice
P j M v K N S v H
ISO cutting
| catalogue number | edges | D | L10 | S | BS | Re | hm |
| XNGJ0704ANENLD3W | 3 | 13 | 6,78 | 4,47 | 6,78 | 1,30 | 0,08 |
Insert Selection Guide
| Material Group | Li Mac Geometry | ght hining | Grade | Gen Purp Geometry | eral ose Grade | H Ma Geometry | ea chi | vy ning Grade |
| P1–P2 | .E..LD | WP40PM | .S..GD | WP40PM | .S..HD | WP40PM | ||
| P3–P4 | .E..LD | WP25PM | .S..GD | WP35CM | .S..HD | WP35CM | ||
| P5–P6 | .E..LD | WP25PM | .S..GD | WP35CM | .S..HD | WP35CM | ||
| M1–M2 | .E..LD | WP25PM | .S..GD | WP25PM | .S..HD | WP25PM | ||
| M3 | .E..LD | WP35CM | .S..GD | WP35CM | .S..HD | WP35CM | ||
| K1–K2 | .E..LD | TN6510 | .S..GD | WK15CM | .S..HD | WK15CM | ||
| K3 | .E..LD | WP35CM | .S..GD | WP35CM | .S..HD | WP35CM | ||
| N1–N2 | .F..LDJ | TN6501 | .F..LDJ | TN6501 | .F..LDJ | TN6501 | ||
| N3 | .F..LDJ | TN6501 | .F..LDJ | TN6501 | .F..LDJ | TN6501 | ||
| S1–S2 | .E..LD | WS30PM | .S..GD | WS30PM | .S..HD | WP25PM | ||
| S3 | .E..LD | WS30PM | .S..GD | WS30PM | .S..GD | WS30PM | ||
| S4 | .E..LD | WS30PM | .S..GD | WS30PM | .S..HD | WP40PM | ||
| H1 | – | – | – | – | – | – |
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, INCLUDING SPARE PARTS AND APPLICATION INFORMATION, VISIT WIDIA NOVO™ OR WIDIA.COM.
