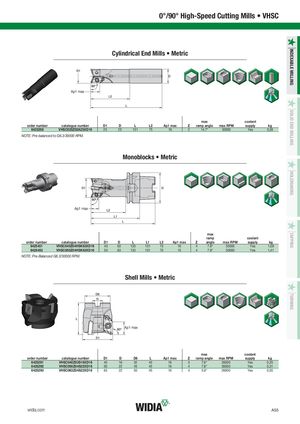

- Material Overview • DIN
Cylindrical End Mills • Metric
Ap1 max
max coolant
| order number | catalogue number | D1 | D | L | L2 | Ap1 max | Z | ramp angle | max RPM | supply | kg | |||
| 6425258 | VHSC025Z02A25XD16 | 25 | 25 | 131 | 75 | 16 | 2 | 14.7° | 50000 | Yes | 0,39 |
NOTE: Pre-balanced to G6.3/30000 RPM.
Monoblocks • Metric
Ap1 max
max ramp coolant
| order number | catalogue number | D1 | D | L | L1 | L2 | Ap1 max | Z | angle | max RPM | supply | kg | ||
| 6425451 | VHSC040Z04HSK63XD16 | 40 | 63 | 133 | 101 | 75 | 16 | 4 | 7.8° | 35000 | Yes | 1,09 | ||
| 6425453 | VHSC050Z04HSK63XD16 | 50 | 63 | 133 | 101 | 75 | 15 | 4 | 7.9° | 30000 | Yes | 1,41 |
NOTE: Pre-Balanced G6.3/30000 RPM.
Shell Mills • Metric
Ap1 max
max coolant
| order number | catalogue number | D1 | D | D6 | L | Ap1 max | Z | ramp angle | max RPM | supply | kg | ||
| 6425291 | VHSC040Z03S16XD16 | 40 | 16 | 32 | 45 | 16 | 3 | 7.6° | 35000 | Yes | 0,20 | ||
| 6425292 | VHSC050Z04S22XD16 | 50 | 22 | 45 | 45 | 16 | 4 | 7.8° | 30000 | Yes | 0,31 | ||
| 6425293 | VHSC063Z04S22XD16 | 63 | 22 | 50 | 45 | 16 | 4 | 5.9° | 26000 | Yes | 0,55 |
