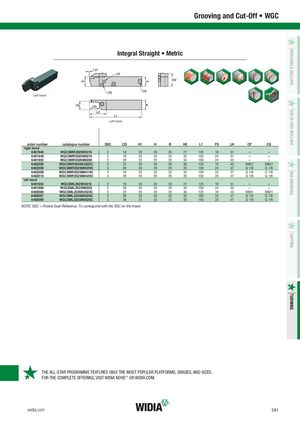

Integral Straight • Metric
Left hand
Left hand
| order number | catalogue number | SSC | CD | H1 | H | B | H2 | L1 | FS | LH | CF | CS |
| right hand | ||||||||||||
| 6461946 | WGCSMR2020K0216 | 2 | 16 | 20 | 20 | 20 | 27 | 125 | 19 | 31 | — | — |
| 6461948 | WGCSMR2525M0216 | 2 | 16 | 25 | 25 | 25 | 32 | 150 | 24 | 31 | — | — |
| 6461952 | WGCSMR2525M0226 | 2 | 26 | 25 | 25 | 25 | 34 | 150 | 24 | 42 | — | — |
| 6462005 | WGCSMR2020K0322C | 3 | 22 | 20 | 20 | 20 | 30 | 125 | 19 | 43 | M8X1 | M8X1 |
| 6462006 | WGCSMR2525M0326C | 3 | 26 | 25 | 25 | 25 | 35 | 150 | 24 | 47 | G 1/8 | G 1/8 |
| 6462008 | WGCSMR2525M0416C | 4 | 16 | 25 | 25 | 25 | 34 | 150 | 23 | 37 | G 1/8 | G 1/8 |
| 6462010 | WGCSMR2525M0426C | 4 | 26 | 25 | 25 | 25 | 35 | 150 | 23 | 47 | G 1/8 | G 1/8 |
| left hand | ||||||||||||
| 6461954 | WGCSML2020K0216 | 2 | 16 | 20 | 20 | 20 | 27 | 125 | 19 | 31 | — | — |
| 6461960 | WGCSML2525M0226 | 2 | 26 | 25 | 25 | 25 | 34 | 150 | 24 | 42 | — | — |
| 6462080 | WGCSML2020K0322C | 3 | 22 | 20 | 20 | 20 | 30 | 125 | 19 | 43 | M8X1 | M8X1 |
| 6462091 | WGCSML2525M0326C | 3 | 26 | 25 | 25 | 25 | 35 | 150 | 24 | 47 | G 1/8 | G 1/8 |
| 6462099 | WGCSML2525M0526C | 5 | 26 | 25 | 25 | 25 | 35 | 150 | 23 | 47 | G 1/8 | G 1/8 |
NOTE: SSC = Pocket Seat Reference. To correspond with the SSC on the insert.
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, VISIT WIDIA NOVO ™ OR WIDIA.COM.
