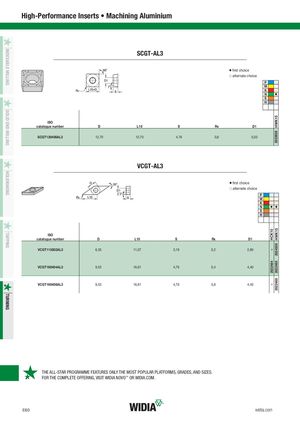

High-Performance Inserts • Machining Aluminium
SCGT-AL3
v first choice j alternate choice
P M K N v S H
ISO
| catalogue number | D | L10 | S | Re | D1 |
| SCGT120408AL3 | 12,70 | 12,70 | 4,76 | 0,8 | 5,50 |
VCGT-AL3
| ISO catalogue number | D L10 | S | R e vi j | D1 first choice alternate choic | P M K N S H e | HCK10 HWK15 v v |
| VCGT110302AL3 VCGT160404AL3 | 6,35 11,07 9,53 16,61 | 3,18 4,76 | 0,2 0,4 | 2,80 4,40 | – 2024559 2022484 2022485 | |
| VCGT160408AL3 | 9,53 16,61 | 4,76 | 0,8 | 4,40 | – 2022488 |
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, VISIT WIDIA NOVO ™ OR WIDIA.COM.
