- Informational Icons Guide
- Material Overview • DIN

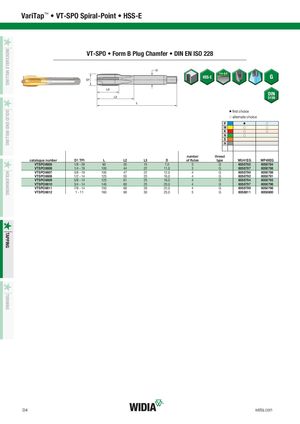

VT-SPO • Form B Plug Chamfer • DIN EN ISO 228
v first choice j alternate choice
| P | v | j |
| M | j | j |
| K | j | j |
N j S H
number thread
| catalogue number | D1 TPI | L | L2 | L3 | D | of flutes | type | WU41EG | WP49EG |
| VTSPO8605 | 1/8 - 28 | 90 | 35 | 15 | 7,0 | 3 | G | 6058785 | 6058784 |
| VTSPO8606 | 1/4 - 19 | 100 | 44 | 22 | 11,0 | 3 | G | 6058787 | 6058786 |
| VTSPO8607 | 3/8 - 19 | 100 | 47 | 22 | 12,0 | 4 | G | 6058790 | 6058788 |
| VTSPO8608 | 1/2 - 14 | 125 | 55 | 25 | 16,0 | 4 | G | 6058792 | 6058791 |
| VTSPO8609 | 5/8 - 14 | 125 | 61 | 25 | 18,0 | 4 | G | 6058794 | 6058793 |
| VTSPO8610 | 3/4 - 14 | 140 | 60 | 25 | 20,0 | 4 | G | 6058797 | 6058796 |
| VTSPO8611 | 7/8 - 14 | 150 | 68 | 28 | 22,0 | 4 | G | 6058799 | 6058798 |
| VTSPO8612 | 1 - 11 | 160 | 68 | 30 | 25,0 | 5 | G | 6058811 | 6058800 |
