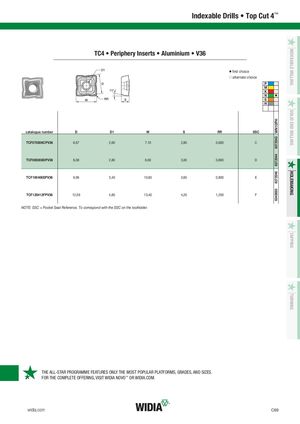

Indexable Drills • Top Cut 4™ INDEXABLE MILLING TC4 • Periphery Inserts • Aluminium • V36 v first choice j alternate choice P M K N v S H SOLID END MILLING 6372043 WN10PH catalogue number D D1 W S RR SSC TCF070306CPV36 6,67 2,60 7,10 2,80 0,600 C 6372044 TCF080308DPV36 8,08 2,80 8,60 3,00 0,800 D 6372046 HOLEMAKING TCF100408EPV36 9,96 3,40 10,60 3,60 0,800 E 6348893 TCF120412FPV36 12,59 4,80 13,40 4,20 1,200 F NOTE: SSC = Pocket Seat Reference. To correspond with the SSC on the toolholder. TAPPING TURNING THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, VISIT WIDIA NOVO™ OR WIDIA.COM. widia.com C69
