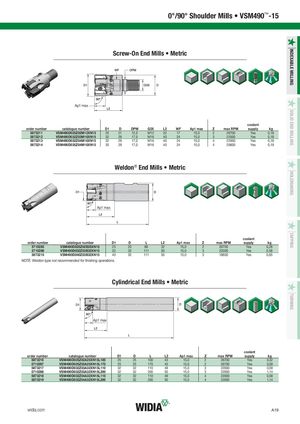

- Material Overview • DIN
Screw-On End Mills • Metric
Ap1 max
coolant
| order number | catalogue number | D1 | D | DPM | G3X | L2 | WF | Ap1 max | Z | max RPM | supply | kg | |
| 5873211 | VSM490D025Z02M12XN15 | 25 | 21 | 12,5 | M12 | 32 | 17 | 15,0 | 2 | 26700 | Yes | 0,18 | |
| 5873212 | VSM490D032Z03M16XN15 | 32 | 29 | 17,0 | M16 | 40 | 24 | 15,0 | 3 | 22000 | Yes | 0,18 | |
| 5873213 | VSM490D032Z04M16XN15 | 32 | 29 | 17,0 | M16 | 40 | 24 | 15,0 | 4 | 22000 | Yes | 0,18 | |
| 5873214 | VSM490D035Z04M16XN15 | 35 | 29 | 17,0 | M16 | 40 | 24 | 15,0 | 4 | 20600 | Yes | 0,19 |
Weldon® End Mills • Metric
Ap1 max
coolant
| order number | catalogue number | D1 | D | L | L2 | Ap1 max | Z | max RPM | supply | kg | |
| 5710285 | VSM490D025Z02B25XN15 | 25 | 25 | 89 | 32 | 15,0 | 2 | 26700 | Yes | 0,28 | |
| 5710286 | VSM490D032Z03B32XN15 | 32 | 32 | 111 | 50 | 15,0 | 3 | 22000 | Yes | 0,58 | |
| 5873215 | VSM490D040Z03B32XN15 | 40 | 32 | 111 | 50 | 15,0 | 3 | 18800 | Yes | 0,65 |
NOTE: Weldon type not recommended for finishing operations. Finishing Capabilities/Lower Cutting Forces Cylindrical End Mills • Metric
Ap1 max
coolant
| order number | catalogue number D1 | D | L | L2 | Ap1 max | Z | max RPM | supply | kg | |
| 5873216 | VSM490D025Z02A25XN15L100 | 25 | 25 | 100 | 43 | 15,0 | 2 | 26700 | Yes | 0,32 |
| 5710287 | VSM490D025Z02A25XN15L170 | 25 | 25 | 170 | 43 | 15,0 | 2 | 26700 | Yes | 0,59 |
| 5873217 | VSM490D032Z03A32XN15L110 | 32 | 32 | 110 | 49 | 15,0 | 3 | 22000 | Yes | 0,59 |
| 5710288 | VSM490D032Z03A32XN15L200 | 32 | 32 | 200 | 50 | 15,0 | 3 | 22000 | Yes | 1,14 |
| 5873218 | VSM490D032Z04A32XN15L110 | 32 | 32 | 110 | 49 | 15,0 | 4 | 22000 | Yes | 0,58 |
| 5873219 | VSM490D032Z04A32XN15L200 | 32 | 32 | 200 | 50 | 15,0 | 4 | 22000 | Yes | 1,14 |
