- Material Overview • DIN

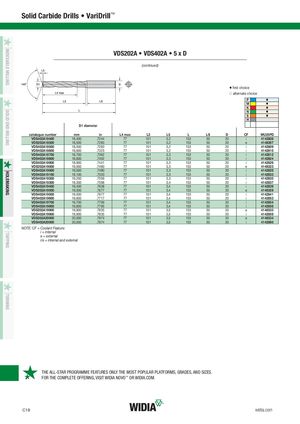

VDS202A • VDS402A • 5 x D
(continued)
| vfir | it choice | |||||||||
| i jal | i ternate choi | ce | ||||||||
| P | v | |||||||||
| M | v | |||||||||
| K N | v v | |||||||||
| S | v | |||||||||
| D1 dia | meter | H | ||||||||
| catalogue number | mm | in | L4 max | L3 | L5 | L | LS | D | CF | WU25PD |
| VDS402A18400 | 18,400 | .7244 | 77 | 101 | 3,2 | 153 | 50 | 20 | i | 4142808 |
| VDS202A18500 | 18,500 | .7283 | 77 | 101 | 3,2 | 153 | 50 | 20 | e | 4148307 |
| VDS402A18500 | 18,500 | .7283 | 77 | 101 | 3,2 | 153 | 50 | 20 | i | 4142809 |
| VDS402A18600 | 18,600 | .7323 | 77 | 101 | 3,2 | 153 | 50 | 20 | i | 4142810 |
| VDS402A18700 | 18,700 | .7362 | 77 | 101 | 3,3 | 153 | 50 | 20 | i | 4142812 |
| VDS402A18800 | 18,800 | .7402 | 77 | 101 | 3,3 | 153 | 50 | 20 | i | 4142824 |
| VDS402A18900 | 18,900 | .7441 | 77 | 101 | 3,3 | 153 | 50 | 20 | i | 4142826 |
| VDS202A19000 | 19,000 | .7480 | 77 | 101 | 3,3 | 153 | 50 | 20 | e | 4148323 |
| VDS402A19000 | 19,000 | .7480 | 77 | 101 | 3,3 | 153 | 50 | 20 | i | 4142828 |
| VDS402A19100 | 19,100 | .7520 | 77 | 101 | 3,3 | 153 | 50 | 20 | i | 4142833 |
| VDS402A19200 | 19,200 | .7559 | 77 | 101 | 3,3 | 153 | 50 | 20 | i | 4142835 |
| VDS402A19300 | 19,300 | .7598 | 77 | 101 | 3,4 | 153 | 50 | 20 | i | 4142837 |
| VDS402A19400 | 19,400 | .7638 | 77 | 101 | 3,4 | 153 | 50 | 20 | i | 4142839 |
| VDS202A19500 | 19,500 | .7677 | 77 | 101 | 3,4 | 153 | 50 | 20 | e | 4148329 |
| VDS402A19500 | 19,500 | .7677 | 77 | 101 | 3,4 | 153 | 50 | 20 | i | 4142841 |
| VDS402A19600 | 19,600 | .7717 | 77 | 101 | 3,4 | 153 | 50 | 20 | i | 4142853 |
| VDS402A19700 | 19,700 | .7756 | 77 | 101 | 3,4 | 153 | 50 | 20 | i | 4142854 |
| VDS402A19800 | 19,800 | .7795 | 77 | 101 | 3,4 | 153 | 50 | 20 | i | 4142856 |
| VDS202A19900 | 19,900 | .7835 | 77 | 101 | 3,5 | 153 | 50 | 20 | e | 4148333 |
| VDS402A19900 | 19,900 | .7835 | 77 | 101 | 3,5 | 153 | 50 | 20 | i | 4142859 |
| VDS202A20000 | 20,000 | .7874 | 77 | 101 | 3,5 | 153 | 50 | 20 | e | 4148334 |
| VDS402A20000 | 20,000 | .7874 | 77 | 101 | 3,5 | 153 | 50 | 20 | i | 4142860 |
NOTE: CF = Coolant Feature: i = internal e = external i/e = internal and external
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, VISIT WIDIA NOVO ™ OR WIDIA.COM.
