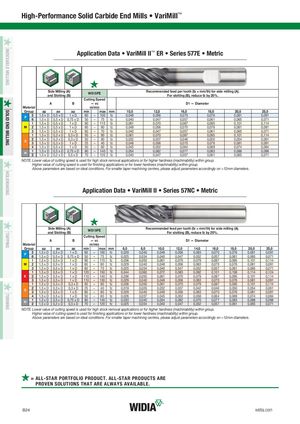

Каталог Widia all star 2020 - страница 146
Навигация
Каталог Widia техническое руководство по разверткам
Каталог Widia достижения 2020
Каталог Widia инструмент для обработки отверстий 2017
Каталог Widia монолитный инструмент 2017
Каталог Widia цельные концевые фрезы- TABLE OF CONTENTS
- INDEXABLE MILLING
- 0º/90º SHOULDER MILLS
- 90° HIGH-SPEED CUTTING MILLS
- FACE MILLS
- HIGH-FEED MILLS
- COPY MILLS
- SOLID END MILLING
- HIGH-PERFORMANCE SOLID CARBIDE END MILLS
- GENERAL PURPOSE SOLID CARBIDE END MILLS
- HOLEMAKING
- SOLID CARBIDE DRILLS
- MODULAR DRILLS
- INDEXABLE DRILLS
- TAPPING
- TURNING
- HIGH-PERFORMANCE INSERTS
- GROOVING & CUT-OFF
- Informational Icons Guide
- Material Overview • DIN
Application Data • VariMill II™ ER • Series 577E • Metric
Side Milling (A) Recommended feed per tooth (fz = mm/th) for side milling (A). WS15PE and Slotting (B) For slotting (B), reduce fz by 20%. Cutting Speed
| A | B | — vc | D1 — Diameter | |
| Material | m/min |
| Group | ap | ae | ap | min | max mm | 10,0 | 12,0 | 16,0 | 18,0 | 20,0 | 25,0 | |||
| 5 | 1,5 x D | 0,5 x D | 1 x D | 60 | – | 100 | fz | 0,048 | 0,056 | 0,070 | 0,076 | 0,081 | 0,091 | |
| P | ||||||||||||||
| 6 | 1,5 x D | 0,5 x D | 0,75 x D | 50 | – | 75 | fz | 0,040 | 0,047 | 0,057 | 0,061 | 0,065 | 0,071 | |
| 1 | 1,5 x D | 0,5 x D | 1 x D | 90 | – | 115 | fz | 0,061 | 0,070 | 0,087 | 0,095 | 0,101 | 0,114 | |
| M | 2 | 1,5 x D | 0,5 x D | 1 x D | 60 | – | 80 | fz | 0,048 | 0,056 | 0,070 | 0,076 | 0,081 | 0,091 |
| 3 | 1,5 x D | 0,5 x D | 1 x D | 60 | – | 70 | fz | 0,040 | 0,047 | 0,057 | 0,061 | 0,065 | 0,071 | |
| 1 | 1,5 x D | 0,3 x D | 0,3 x D | 50 | – | 90 | fz | 0,061 | 0,070 | 0,087 | 0,095 | 0,101 | 0,114 | |
| 2 | 1,5 x D | 0,3 x D | 0,3 x D | 50 | – | 90 | fz | 0,032 | 0,037 | 0,046 | 0,050 | 0,054 | 0,061 | |
| S | ||||||||||||||
| 3 | 1,5 x D | 0,3 x D | 1 x D | 25 | – | 40 | fz | 0,048 | 0,056 | 0,070 | 0,076 | 0,081 | 0,091 | |
| 4 | 1,5 x D | 0,5 x D | 1 x D | 50 | – | 60 | fz | 0,045 | 0,052 | 0,064 | 0,069 | 0,074 | 0,084 | |
| 1 | 1,5 x D | 0,5 x D | 0,75 x D | 80 | – | 140 | fz | 0,054 | 0,062 | 0,077 | 0,083 | 0,088 | 0,098 | |
| H | ||||||||||||||
| 2 | 1,5 x D | 0,2 x D | 0,5 x D | 70 | – | 120 | fz | 0,040 | 0,047 | 0,057 | 0,061 | 0,065 | 0,071 |
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on >12mm diameters.
Application Data • VariMill II • Series 57NC • Metric
Side Milling (A) Recommended feed per tooth (fz = mm/th) for side milling (A). WS15PE and Slotting (B) For slotting (B), reduce fz by 20%. Cutting Speed
| A | B | — vc | D1 — Diameter | |
| Material | m/min |
| Group | ap | ae | ap | min | max mm | 6,0 | 8,0 | 10,0 | 12,0 | 14,0 | 16,0 | 18,0 | 20,0 | 25,0 | |||
| 5 | 1,5 x D | 0,5 x D | 1 x D | 60 | – | 100 | fz | 0,029 | 0,040 | 0,048 | 0,056 | 0,063 | 0,070 | 0,076 | 0,081 | 0,091 | |
| P | |||||||||||||||||
| 6 | 1,5 x D | 0,5 x D | 0,75 x D | 50 | – | 75 | fz | 0,025 | 0,034 | 0,040 | 0,047 | 0,052 | 0,057 | 0,061 | 0,065 | 0,071 | |
| 1 | 1,5 x D | 0,5 x D | 1 x D | 90 | – | 115 | fz | 0,036 | 0,050 | 0,061 | 0,070 | 0,079 | 0,087 | 0,095 | 0,101 | 0,114 | |
| M | 2 | 1,5 x D | 0,5 x D | 1 x D | 60 | – | 80 | fz | 0,029 | 0,040 | 0,048 | 0,056 | 0,063 | 0,070 | 0,076 | 0,081 | 0,091 |
| 3 | 1,5 x D | 0,5 x D | 1 x D | 60 | – | 70 | fz | 0,025 | 0,034 | 0,040 | 0,047 | 0,052 | 0,057 | 0,061 | 0,065 | 0,071 | |
| 1 | 1,5 x D | 0,5 x D | 1 x D | 120 | – | 150 | fz | 0,044 | 0,060 | 0,072 | 0,083 | 0,092 | 0,101 | 0,108 | 0,114 | 0,124 | |
| K | 2 | 1,5 x D | 0,5 x D | 1 x D | 110 | – | 140 | fz | 0,036 | 0,050 | 0,061 | 0,070 | 0,079 | 0,087 | 0,095 | 0,101 | 0,114 |
| 3 | 1,5 x D | 0,5 x D | 1 x D | 110 | – | 130 | fz | 0,029 | 0,040 | 0,048 | 0,056 | 0,063 | 0,070 | 0,076 | 0,081 | 0,091 | |
| 1 | 1,5 x D | 0,3 x D | 0,3 x D | 50 | – | 90 | fz | 0,036 | 0,050 | 0,061 | 0,070 | 0,079 | 0,087 | 0,095 | 0,101 | 0,114 | |
| 2 | 1,5 x D | 0,3 x D | 0,3 x D | 25 | – | 40 | fz | 0,019 | 0,026 | 0,032 | 0,037 | 0,042 | 0,046 | 0,050 | 0,054 | 0,061 | |
| S | |||||||||||||||||
| 3 | 1,5 x D | 0,5 x D | 1 x D | 60 | – | 80 | fz | 0,029 | 0,040 | 0,048 | 0,056 | 0,063 | 0,070 | 0,076 | 0,081 | 0,091 | |
| 4 | 1,5 x D | 0,5 x D | 1 x D | 50 | – | 60 | fz | 0,026 | 0,037 | 0,045 | 0,052 | 0,058 | 0,064 | 0,069 | 0,074 | 0,084 | |
| 1 | 1,5 x D | 0,5 x D | 0,75 x D | 80 | – | 140 | fz | 0,033 | 0,045 | 0,054 | 0,062 | 0,070 | 0,077 | 0,083 | 0,088 | 0,098 | |
| H | |||||||||||||||||
| 2 | 1,5 x D | 0,2 x D | 0,5 x D | 70 | – | 120 | fz | 0,025 | 0,034 | 0,040 | 0,047 | 0,052 | 0,057 | 0,061 | 0,065 | 0,071 |
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on >12mm diameters.
= ALL-STAR PORTFOLIO PRODUCT. ALL-STAR PRODUCTS ARE
PROVEN SOLUTIONS THAT ARE ALWAYS AVAILABLE.
