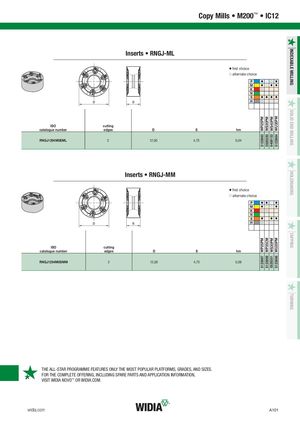

Inserts • RNGJ-ML
v first choice j alternate choice
| P | j v v |
| M | vjvv |
| K | j |
| N | |
| S | vvvv |
| H | j |
ISO cutting
| catalogue number | edges | D | S | hm |
| RNGJ1204M0EML | 2 | 12,00 | 4,75 | 0,04 |
Inserts • RNGJ-MM
v first choice j alternate choice
| P | v v | v | |
| M | vjjv | ||
| K | j j | ||
| N | |||
| S | v | v v |
H j
ISO cutting
| catalogue number | edges | D | S | hm |
| RNGJ1204M0SMM | 2 | 12,00 | 4,75 | 0,09 |
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, INCLUDING SPARE PARTS AND APPLICATION INFORMATION, VISIT WIDIA NOVO™ OR WIDIA.COM.
