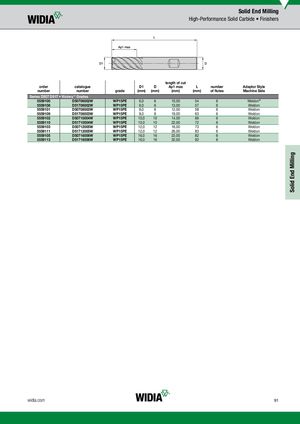

Solid End Milling Solid End Milling High-Performance Solid Carbide • Finishers length of cut order catalogue D1 D Ap1 max L number Adaptor Style number number grade (mm) (mm) (mm) (mm) of flutes Machine Side Series D507 D517 • Victory™ Grades 5559100 D50706002W WP15PE 6,0 6 10,00 54 6 Weldon® 5559108 D51706002W WP15PE 6,0 6 13,00 57 6 Weldon 5559101 D50708003W WP15PE 8,0 8 12,00 58 6 Weldon 5559109 D51708003W WP15PE 8,0 8 19,00 63 6 Weldon 5559102 D50710004W WP15PE 10,0 10 14,00 66 6 Weldon 5559110 D51710004W WP15PE 10,0 10 22,00 72 6 Weldon 5559103 D50712005W WP15PE 12,0 12 16,00 73 6 Weldon 5559111 D51712005W WP15PE 12,0 12 26,00 83 6 Weldon 5559105 D50716006W WP15PE 16,0 16 22,00 82 6 Weldon 5559113 D51716006W WP15PE 16,0 16 32,00 92 6 Weldon widia.com 91
