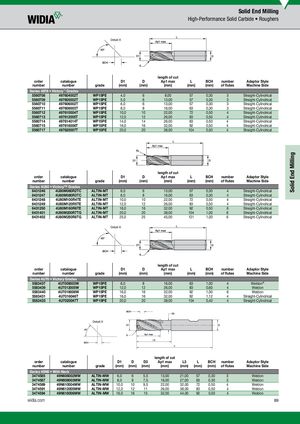

Каталог Widia all star 2019 - страница 91

Solid End Milling Solid End Milling High-Performance Solid Carbide • Roughers Detail X length of cut order catalogue D1 D Ap1 max L BCH number Adaptor Style number number grade (mm) (mm) (mm) (mm) (mm) of flutes Machine Side Series 4976 • Victory™ Grades 5560708 497604002T WP15PE 4,0 6 8,00 57 0,30 3 Straight-Cylindrical 5560709 497605002T WP15PE 5,0 6 13,00 57 0,30 3 Straight-Cylindrical 5560710 497606002T WP15PE 6,0 6 13,00 57 0,30 3 Straight-Cylindrical 5560711 497608003T WP15PE 8,0 8 16,00 63 0,30 3 Straight-Cylindrical 5560712 497610004T WP15PE 10,0 10 22,00 72 0,50 4 Straight-Cylindrical 5560713 497612005T WP15PE 12,0 12 26,00 83 0,50 4 Straight-Cylindrical 5560714 497614014T WP15PE 14,0 14 26,00 83 0,50 4 Straight-Cylindrical 5560715 497616006T WP15PE 16,0 16 32,00 92 0,50 4 Straight-Cylindrical 5560717 497620007T WP15PE 20,0 20 38,00 104 0,50 4 Straight-Cylindrical length of cut order catalogue D1 D Ap1 max L BCH number Adaptor Style number number grade (mm) (mm) (mm) (mm) (mm) of flutes Machine Side Series 4U80 • Victory™ Grades 6431246 4U80M060R2TC ALTIN-MT 6,0 6 13,00 57 0,30 4 Straight-Cylindrical 6431247 4U80M080R3TC ALTIN-MT 8,0 8 16,00 63 0,30 4 Straight-Cylindrical 6431248 4U80M100R4TE ALTIN-MT 10,0 10 22,00 72 0,50 4 Straight-Cylindrical 6431249 4U80M120R5TE ALTIN-MT 12,0 12 26,00 83 0,50 4 Straight-Cylindrical 6431250 4U80M160R6TE ALTIN-MT 16,0 16 32,00 92 0,50 6 Straight-Cylindrical 6431401 4U80M200R7TG ALTIN-MT 20,0 20 38,00 104 1,00 6 Straight-Cylindrical 6431402 4U80M250R8TG ALTIN-MT 25,0 25 45,00 121 1,00 6 Straight-Cylindrical Detail X length of cut order catalogue D1 D Ap1 max L BCH number Adaptor Style number number grade (mm) (mm) (mm) (mm) (mm) of flutes Machine Side Series 4U70 • Victory Grades 5583437 4U7008003W WP15PE 8,0 8 16,00 63 1,00 4 Weldon® 5583439 4U7012005W WP15PE 12,0 12 26,00 83 0,60 4 Weldon 5583440 4U7016006W WP15PE 16,0 16 32,00 92 1,00 6 Weldon 5583431 4U7016046T WP15PE 16,0 16 32,00 92 1,12 4 Straight-Cylindrical 5583433 4U7020047T WP15PE 20,0 20 38,00 104 0,40 4 Straight-Cylindrical Detail X length of cut order catalogue D1 D D3 Ap1 max L3 L BCH number Adaptor Style number number grade (mm) (mm) (mm) (mm) (mm) (mm) (mm) of flutes Machine Side Series 49N6 • With Neck 3474585 49N606002MW ALTIN-MW 6,0 6 5,5 13,00 21,00 57 0,30 3 Weldon 3474587 49N608003MW ALTIN-MW 8,0 8 7,5 16,00 27,00 63 0,30 3 Weldon 3474589 49N610004MW ALTIN-MW 10,0 10 9,5 22,00 32,00 72 0,50 4 Weldon 3474591 49N612005MW ALTIN-MW 12,0 12 11 26,00 38,00 83 0,50 4 Weldon 3474594 49N616006MW ALTIN-MW 16,0 16 15 32,00 44,00 92 0,50 4 Weldon widia.com 89
