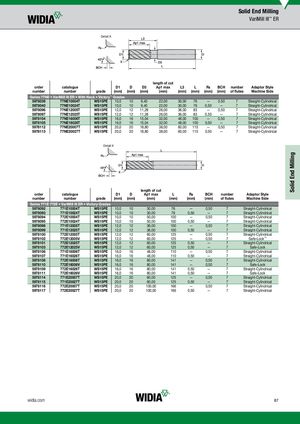

Solid End Milling Solid End Milling VariMill III™ ER Detail X length of cut order catalogue D1 D D3 Ap1 max L3 L Rε BCH number Adaptor Style number number grade (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) of flutes Machine Side Series 77NE • VariMill III ER • With Neck • Victory™ Grades 5978039 77NE10004T WS15PE 10,0 10 9,40 22,00 30,00 76 — 0,50 7 Straight-Cylindrical 5978040 77NE10024T WS15PE 10,0 10 9,40 22,00 30,00 76 0,50 — 7 Straight-Cylindrical 5978096 77NE12005T WS15PE 12,0 12 11,28 26,00 36,00 83 — 0,50 7 Straight-Cylindrical 5978097 77NE12025T WS15PE 12,0 12 11,28 26,00 36,00 83 0,50 — 7 Straight-Cylindrical 5978104 77NE16006T WS15PE 16,0 16 15,04 32,00 48,00 100 — 0,50 7 Straight-Cylindrical 5978105 77NE16026T WS15PE 16,0 16 15,04 32,00 48,00 100 0,50 — 7 Straight-Cylindrical 5978112 77NE20007T WS15PE 20,0 20 18,80 38,00 60,00 115 — 0,50 7 Straight-Cylindrical 5978113 77NE20027T WS15PE 20,0 20 18,80 38,00 60,00 115 0,50 — 7 Straight-Cylindrical Detail X length of cut order catalogue D1 D Ap1 max L Rε BCH number Adaptor Style number number grade (mm) (mm) (mm) (mm) (mm) (mm) of flutes Machine Side Series 771E 772E • VariMill III ER • Victory Grades 5978092 771E10004T WS15PE 10,0 10 30,00 76 — 0,50 7 Straight-Cylindrical 5978093 771E10024T WS15PE 10,0 10 30,00 76 0,50 — 7 Straight-Cylindrical 5978094 772E10004T WS15PE 10,0 10 50,00 100 — 0,50 7 Straight-Cylindrical 5978095 772E10024T WS15PE 10,0 10 50,00 100 0,50 — 7 Straight-Cylindrical 5978098 771E12005T WS15PE 12,0 12 36,00 100 — 0,50 7 Straight-Cylindrical 5978099 771E12025T WS15PE 12,0 12 36,00 100 0,50 — 7 Straight-Cylindrical 5978100 772E12005T WS15PE 12,0 12 60,00 125 — 0,50 7 Straight-Cylindrical 5978102 772E12005V WS15PE 12,0 12 60,00 125 — 0,50 7 Safe-Lock™ 5978101 772E12025T WS15PE 12,0 12 60,00 125 0,50 — 7 Straight-Cylindrical 5978103 772E12025V WS15PE 12,0 12 60,00 125 0,50 — 7 Safe-Lock 5978106 771E16006T WS15PE 16,0 16 48,00 110 — 0,50 7 Straight-Cylindrical 5978107 771E16026T WS15PE 16,0 16 48,00 110 0,50 — 7 Straight-Cylindrical 5978108 772E16006T WS15PE 16,0 16 80,00 141 — 0,50 7 Straight-Cylindrical 5978110 772E16006V WS15PE 16,0 16 80,00 141 — 0,50 7 Safe-Lock 5978109 772E16026T WS15PE 16,0 16 80,00 141 0,50 — 7 Straight-Cylindrical 5978111 772E16026V WS15PE 16,0 16 80,00 141 0,50 — 7 Safe-Lock 5978114 771E20007T WS15PE 20,0 20 60,00 125 — 0,50 7 Straight-Cylindrical 5978115 771E20027T WS15PE 20,0 20 60,00 125 0,50 — 7 Straight-Cylindrical 5978116 772E20007T WS15PE 20,0 20 100,00 166 — 0,50 7 Straight-Cylindrical 5978117 772E20027T WS15PE 20,0 20 100,00 166 0,50 — 7 Straight-Cylindrical widia.com 87
