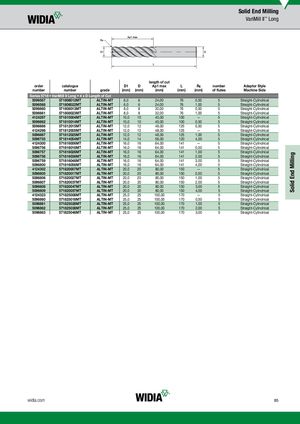

Каталог Widia all star 2019 - страница 87

Solid End Milling Solid End Milling VariMill II™ Long length of cut order catalogue D1 D Ap1 max L Rε number Adaptor Style number number grade (mm) (mm) (mm) (mm) (mm) of flutes Machine Side Series 5718 • VariMill II Long • 4 x D Length of Cut 5096567 571806012MT ALTIN-MT 6,0 6 24,00 76 0,50 5 Straight-Cylindrical 5096568 571806022MT ALTIN-MT 6,0 6 24,00 76 1,00 5 Straight-Cylindrical 5096660 571808013MT ALTIN-MT 8,0 8 32,00 76 0,50 5 Straight-Cylindrical 5096661 571808023MT ALTIN-MT 8,0 8 32,00 76 1,00 5 Straight-Cylindrical 4124297 571810004MT ALTIN-MT 10,0 10 40,00 100 — 5 Straight-Cylindrical 5096662 571810014MT ALTIN-MT 10,0 10 40,00 100 0,50 5 Straight-Cylindrical 5096666 571812015MT ALTIN-MT 12,0 12 48,00 125 0,50 5 Straight-Cylindrical 4124298 571812005MT ALTIN-MT 12,0 12 48,00 125 — 5 Straight-Cylindrical 5096667 571812025MT ALTIN-MT 12,0 12 48,00 125 1,00 5 Straight-Cylindrical 5096755 571814054MT ALTIN-MT 14,0 14 56,00 120 4,00 5 Straight-Cylindrical 4124300 571816006MT ALTIN-MT 16,0 16 64,00 141 — 5 Straight-Cylindrical 5096756 571816016MT ALTIN-MT 16,0 16 64,00 141 0,50 5 Straight-Cylindrical 5096757 571816026MT ALTIN-MT 16,0 16 64,00 141 1,00 5 Straight-Cylindrical 5096758 571816036MT ALTIN-MT 16,0 16 64,00 141 2,00 5 Straight-Cylindrical 5096759 571816046MT ALTIN-MT 16,0 16 64,00 141 3,00 5 Straight-Cylindrical 5096800 571816056MT ALTIN-MT 16,0 16 64,00 141 4,00 5 Straight-Cylindrical 4124302 571820007MT ALTIN-MT 20,0 20 80,00 150 — 5 Straight-Cylindrical 5096805 571820017MT ALTIN-MT 20,0 20 80,00 150 0,50 5 Straight-Cylindrical 5096806 571820027MT ALTIN-MT 20,0 20 80,00 150 1,00 5 Straight-Cylindrical 5096807 571820037MT ALTIN-MT 20,0 20 80,00 150 2,00 5 Straight-Cylindrical 5096808 571820047MT ALTIN-MT 20,0 20 80,00 150 3,00 5 Straight-Cylindrical 5096809 571820057MT ALTIN-MT 20,0 20 80,00 150 4,00 5 Straight-Cylindrical 4124323 571825008MT ALTIN-MT 25,0 25 100,00 170 — 5 Straight-Cylindrical 5096860 571825018MT ALTIN-MT 25,0 25 100,00 170 0,50 5 Straight-Cylindrical 5096861 571825028MT ALTIN-MT 25,0 25 100,00 170 1,00 5 Straight-Cylindrical 5096862 571825038MT ALTIN-MT 25,0 25 100,00 170 2,00 5 Straight-Cylindrical 5096863 571825048MT ALTIN-MT 25,0 25 100,00 170 3,00 5 Straight-Cylindrical widia.com 85
