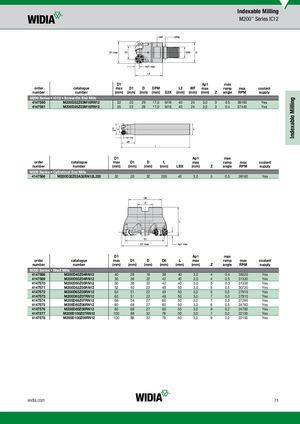

Indexable Milling Indexable Milling M200™ Series IC12 D1 Ap1 max order catalogue max D1 D DPM L2 WF max ramp max coolant number number (mm) (mm) (mm) (mm) G3X (mm) (mm) (mm) Z angle RPM supply M200 Series • IC12 • Screw-On End Mills 4147560 M200D32Z03M16RN12 32 20 29 17,0 M16 40 24 3,0 3 0.5 39160 Yes 4147561 M200D35Z03M16RN12 35 23 29 17,0 M16 40 24 3,0 3 0.4 37440 Yes D1 Ap1 max order catalogue max D1 D L max ramp max coolant number number (mm) (mm) (mm) (mm) LBX (mm) Z angle RPM supply M200 Series • Cylindrical End Mills 4147566 M200D32Z03A32RN12L200 32 20 32 200 40 3,0 3 0.5 39160 Yes D1 Ap1 max order catalogue max D1 D D6 L max ramp max coolant number number (mm) (mm) (mm) (mm) (mm) (mm) Z angle RPM supply M200 Series • Shell Mills 4147568 M200D40Z04RN12 40 28 16 38 40 3,0 4 0.4 35020 Yes 4147569 M200D50Z04RN12 50 38 22 42 40 3,0 4 0.5 31330 Yes 4147570 M200D50Z05RN12 50 38 22 42 40 3,0 5 0.3 31330 Yes 4147571 M200D52Z05RN12 52 40 22 49 50 3,0 5 0.5 30720 Yes 4147572 M200D63Z05RN12 63 51 22 49 50 3,0 5 0.5 27910 Yes 4147573 M200D63Z07RN12 63 51 22 49 50 3,0 7 0.3 27910 Yes 4147574 M200D66Z07RN12 66 54 27 60 50 3,0 7 0.3 27260 Yes 4147575 M200D80Z06RN12 80 68 27 60 50 3,0 6 0.5 24760 Yes 4147576 M200D80Z08RN12 80 68 27 60 50 3,0 8 0.2 24760 Yes 4147577 M200D100Z07RN12 100 88 32 78 50 3,0 7 0.2 22150 Yes 4147578 M200D100Z09RN12 100 88 32 78 50 3,0 9 0.2 22150 Yes widia.com 71
