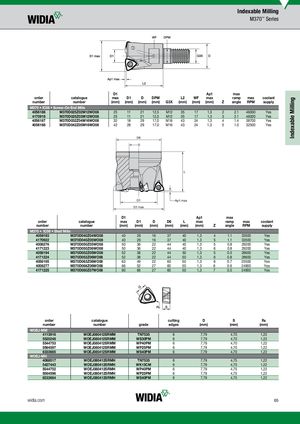

Каталог Widia all star 2019 - страница 67

Indexable Milling Indexable Milling M370™ Series D1 Ap1 max order catalogue max D1 D DPM L2 WF max ramp max coolant number number (mm) (mm) (mm) (mm) G3X (mm) (mm) (mm) Z angle RPM supply M370 • IC08 • Screw-On End Mills 4056186 M370D025Z02M12WO08 25 11 21 12,5 M12 35 17 1,3 2 2.1 46000 Yes 4170918 M370D025Z03M12WO08 25 11 21 12,5 M12 35 17 1,3 3 2.1 46000 Yes 4056187 M370D032Z04M16WO08 32 18 29 17,0 M16 43 24 1,3 4 1.4 38700 Yes 4056188 M370D042Z05M16WO08 42 28 29 17,0 M16 43 24 1,3 5 1.0 32500 Yes D6 D L D1 Ap1 max D1 max D1 Ap1 max order catalogue max D1 D D6 L max ramp max coolant number number (mm) (mm) (mm) (mm) (mm) (mm) Z angle RPM supply M370 • IC08 • Shell Mills 4056193 M370D040Z04WO08 40 26 16 37 40 1,3 4 1.1 33500 Yes 4170922 M370D040Z05WO08 40 26 16 37 40 1,3 5 1.1 33500 Yes 4008276 M370D050Z05WO08 50 36 22 44 40 1,3 5 0.8 29200 Yes 4171223 M370D050Z06WO08 50 36 22 44 40 1,3 6 0.8 29200 Yes 4056194 M370D052Z05WO08 52 38 22 44 50 1,3 5 0.5 28600 Yes 4171224 M370D052Z06WO08 52 38 22 44 50 1,3 6 0.8 28600 Yes 4056195 M370D063Z06WO08 63 49 22 60 50 1,3 6 0.7 25500 Yes 4008277 M370D066Z06WO08 66 52 27 60 50 1,3 6 0.6 24900 Yes 4171225 M370D080Z07WO08 80 66 27 60 50 1,3 7 0.5 24900 Yes order catalogue cutting D S Rε number number grade edges (mm) (mm) (mm) WOEJ-MM 4113916 WOEJ080412SRMM TN7535 6 7,79 4,70 1,22 5520248 WOEJ080412SRMM WS30PM 6 7,79 4,70 1,22 5544753 WOEJ080412SRMM WP40PM 6 7,79 4,70 1,22 5564597 WOEJ080412SRMM WP25PM 6 7,79 4,70 1,22 6333665 WOEJ080412SRMM WS40PM 6 7,79 4,70 1,22 WOEJ-MH 4068517 WOEJ080412SRMH TN7535 6 7,79 4,75 1,22 5427443 WOEJ080412SRMH WK15CM 6 7,79 4,75 1,22 5544752 WOEJ080412SRMH WP40PM 6 7,79 4,75 1,22 5564596 WOEJ080412SRMH WP25PM 6 7,79 4,75 1,22 6333664 WOEJ080412SRMH WS40PM 6 7,79 4,75 1,22 widia.com 65
