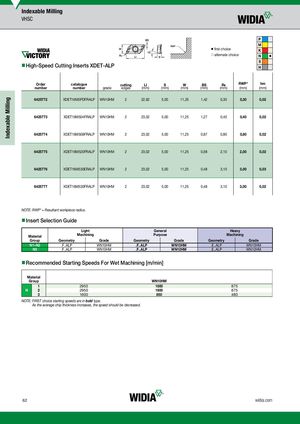

Indexable Milling Indexable Milling VHSC P M v first choice K j alternate choice N v S nnHigh-Speed Cutting Inserts XDET-ALP H Order catalogue cutting LI S W BS Rε RWP* hm number number grade edges (mm) (mm) (mm) (mm) (mm) (mm) (mm) 6425772 XDET16M5PDFRALP WN10HM 2 22,92 5,00 11,25 1,42 0,30 0,30 0,02 6425773 XDET16M504FRALP WN10HM 2 23,02 5,00 11,25 1,27 0,40 0,40 0,02 6425774 XDET16M508FRALP WN10HM 2 23,02 5,00 11,25 0,87 0,80 0,80 0,02 6425775 XDET16M520FRALP WN10HM 2 23,02 5,00 11,25 0,58 2,10 2,00 0,02 6425776 XDET16M530ERALP WN10HM 2 23,02 5,00 11,25 0,48 3,10 3,00 0,03 6425777 XDET16M530FRALP WN10HM 2 23,02 5,00 11,25 0,48 3,10 3,00 0,02 NOTE: RWP* = Resultant workpiece radius. nnInsert Selection Guide Light General Heavy Material Machining Purpose Machining Group Geometry Grade Geometry Grade Geometry Grade N1–N2 .F..ALP WN10HM .F..ALP WN10HM .E..ALP WN10HM N3 .F..ALP WN10HM .F..ALP WN10HM .E..ALP WN10HM nnRecommended Starting Speeds For Wet Machining [m/min] Material Group WN10HM 1 2950 1800 875 N 2 2950 1800 875 3 1600 850 480 NOTE: FIRST choice starting speeds are in bold type. As the average chip thickness increases, the speed should be decreased. 62 widia.com
