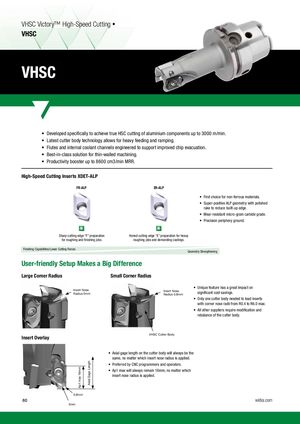

VHSC Victory™ High-Speed Cutting • VHSC VHSC • Developed specifically to achieve true HSC cutting of aluminium components up to 3000 m/min.  • Latest cutter body technology allows for heavy feeding and ramping.  • Flutes and internal coolant channels engineered to support improved chip evacuation.  • Best-in-class solution for thin-walled machining.  • Productivity booster up to 8600 cm3/min MRR.  High-Speed Cutting Inserts XDET-ALP FR-ALP ER-ALP • First choice for non-ferrous materials.   • Super-positive ALP geometry with polished rake to reduce built-up edge.   • Wear-resistant micro-grain carbide grade.   • Precision periphery ground.  N N Sharp cutting edge “F” preparation Honed cutting edge “E” preparation for heavy for roughing and finishing jobs. roughing jobs and demanding castings. Finishing Capabilities/Lower Cutting Forces Geometry Strengthening User-friendly Setup Makes a Big Difference Large Corner Radius Small Corner Radius • Unique feature has a great impact on Insert NoseRadius 5mm Insert NoseRadius 0.8mmsignificant cost savings.  • Only one cutter body needed to load inserts with corner nose radii from R0.4 to R6.0 max.   • All other suppliers require modification and rebalance of the cutter body.  VHSC Cutter Body Insert Overlay • Axial gage length on the cutter body will always be the same, no matter which insert nose radius is applied.  • Preferred by CNC programmers and operators.  • Ap1 max will always remain 16mm, no matter which insert nose radius is applied.  0.8mm 60 widia.com 5mm Ap1 max 16mm Axial Gage Length
