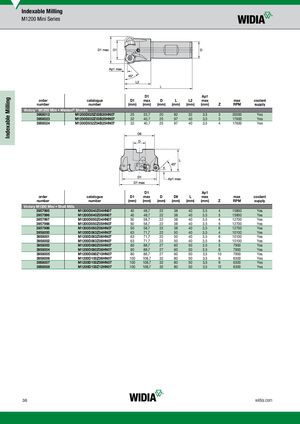

Каталог Widia all star 2019 - страница 38
Навигация
Каталог Widia all star 2020
Каталог Widia токарный инструмент 2017
Каталог Widia достижения 2018
Каталог Widia достижения 2017
Брошюра Widia техническое руководство
L D1 Ap1
| order | catalogue | D1 | max | D | L | L2 | max | max | coolant | ||
| number | number | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | Z | RPM | supply | |
| Victory™ M1200 Mini • Weldon® Shanks | |||||||||||
| 3958012 | M1200D025Z03B20HN07 | 25 | 33,7 | 20 | 82 | 32 | 3,5 | 3 | 20000 | Yes | |
| 3958023 | M1200D032Z03B25HN07 | 32 | 40,7 | 25 | 97 | 40 | 3,5 | 3 | 17600 | Yes | |
| 3958024 | M1200D032Z04B25HN07 | 32 | 40,7 | 25 | 97 | 40 | 3,5 | 4 | 17600 | Yes |
D1 Ap1
| order | catalogue D1 | max | D | D6 | L | max | max | coolant | ||
| number | number (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | Z | RPM | supply | |
| Victory M1200 Mini • Shell Mills | ||||||||||
| 3957995 | M1200D040Z04HN07 | 40 | 48,7 | 22 | 38 | 40 | 3,5 | 4 | 15800 | Yes |
| 3957996 | M1200D040Z05HN07 | 40 | 48,7 | 22 | 38 | 40 | 3,5 | 5 | 15800 | Yes |
| 3957997 | M1200D050Z04HN07 | 50 | 58,7 | 22 | 38 | 40 | 3,5 | 4 | 12700 | Yes |
| 3957998 | M1200D050Z05HN07 | 50 | 58,7 | 22 | 38 | 40 | 3,5 | 5 | 12700 | Yes |
| 3957999 | M1200D050Z06HN07 | 50 | 58,7 | 22 | 38 | 40 | 3,5 | 6 | 12700 | Yes |
| 3958000 | M1200D063Z04HN07 | 63 | 71,7 | 22 | 50 | 40 | 3,5 | 4 | 10100 | Yes |
| 3958001 | M1200D063Z06HN07 | 63 | 71,7 | 22 | 50 | 40 | 3,5 | 6 | 10100 | Yes |
| 3958002 | M1200D063Z08HN07 | 63 | 71,7 | 22 | 50 | 40 | 3,5 | 8 | 10100 | Yes |
| 3958003 | M1200D080Z05HN07 | 80 | 88,7 | 27 | 60 | 50 | 3,5 | 5 | 7900 | Yes |
| 3958004 | M1200D080Z08HN07 | 80 | 88,7 | 27 | 60 | 50 | 3,5 | 8 | 7900 | Yes |
| 3958005 | M1200D080Z10HN07 | 80 | 88,7 | 27 | 60 | 50 | 3,5 | 10 | 7900 | Yes |
| 3958006 | M1200D100Z06HN07 | 100 | 108,7 | 32 | 80 | 50 | 3,5 | 6 | 6300 | Yes |
| 3958007 | M1200D100Z09HN07 | 100 | 108,7 | 32 | 80 | 50 | 3,5 | 9 | 6300 | Yes |
| 3958008 | M1200D100Z12HN07 | 100 | 108,7 | 32 | 80 | 50 | 3,5 | 12 | 6300 | Yes |
