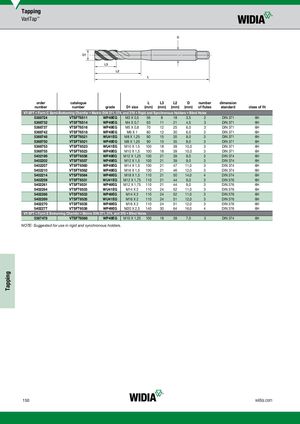

Tapping VariTap™ order catalogue L L3 L2 D number dimension number number grade D1 size (mm) (mm) (mm) (mm) of flutes standard class of fit VT-SFT • Form C Semi-Bottoming Chamfer • Metric DIN 371, 374, and 376 • Rigid and Synchronous Holders • Blind Holes 5368724 VTSFT6511 WP49EG M3 X 0,5 56 8 18 3,5 2 DIN 371 6H 5368732 VTSFT6514 WP49EG M4 X 0,7 63 11 21 4,5 3 DIN 371 6H 5368737 VTSFT6516 WP49EG M5 X 0,8 70 12 25 6,0 3 DIN 371 6H 5368742 VTSFT6518 WP49EG M6 X 1 80 12 30 6,0 3 DIN 371 6H 5368748 VTSFT6521 WU41EG M8 X 1,25 90 15 35 8,0 3 DIN 371 6H 5368750 VTSFT6521 WP49EG M8 X 1,25 90 15 35 8,0 3 DIN 371 6H 5368753 VTSFT6523 WU41EG M10 X 1,5 100 18 39 10,0 3 DIN 371 6H 5368755 VTSFT6523 WP49EG M10 X 1,5 100 18 39 10,0 3 DIN 371 6H 5402199 VTSFT6556 WP49EG M12 X 1,25 100 21 39 9,0 3 DIN 374 6H 5402202 VTSFT6557 WP49EG M12 X 1,5 100 21 39 9,0 3 DIN 374 6H 5402207 VTSFT6560 WP49EG M14 X 1,5 100 21 47 11,0 3 DIN 374 6H 5402210 VTSFT6562 WP49EG M16 X 1,5 100 21 46 12,0 3 DIN 374 6H 5402214 VTSFT6564 WP49EG M18 X 1,5 110 21 50 14,0 4 DIN 374 6H 5402259 VTSFT6531 WU41EG M12 X 1,75 110 21 44 9,0 3 DIN 376 6H 5402261 VTSFT6531 WP49EG M12 X 1,75 110 21 44 9,0 3 DIN 376 6H 5402264 VTSFT6533 WU41EG M14 X 2 110 24 52 11,0 3 DIN 376 6H 5402266 VTSFT6533 WP49EG M14 X 2 110 24 52 11,0 3 DIN 376 6H 5402269 VTSFT6535 WU41EG M16 X 2 110 24 51 12,0 3 DIN 376 6H 5402270 VTSFT6535 WP49EG M16 X 2 110 24 51 12,0 3 DIN 376 6H 5402277 VTSFT6538 WP49EG M20 X 2,5 140 30 64 16,0 4 DIN 376 6H VT-SFT • Form E Bottoming Chamfer • Metric DIN 371, 374, and 376 • Blind Holes 5387478 VTSFT6586 WP49EG M10 X 1,25 100 18 39 7,0 3 DIN 374 6H NOTE: Suggested for use in rigid and synchronous holders. 150 widia.com Tapping
