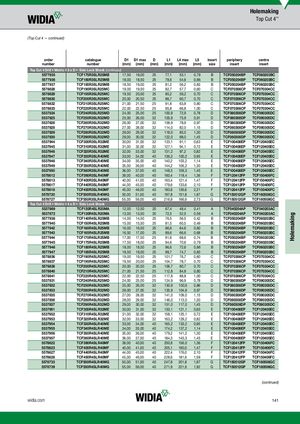

Каталог Widia all star 2019 - страница 143

Holemaking Top Cut 4™ (Top Cut 4 — continued) order catalogue D1 D1 max D L1 L4 max L5 insert periphery centre number number (mm) (mm) (mm) (mm) (mm) (mm) size insert insert Top Cut 4 Drill • Metric • 3 x D • Side Lock Shank (continued) 5577935 TCF175R3SLR25MB 17,50 18,00 25 77,1 53,1 0,79 B TCF050204BP TCF060203BC 5577936 TCF180R3SLR25MB 18,00 18,50 25 78,6 54,6 0,86 B TCF050204BP TCF060203BC 5577937 TCF185R3SLR25MB 18,50 19,00 25 81,2 56,2 0,83 B TCF050204BP TCF060203BC 5578828 TCF190R3SLR25MC 19,00 19,50 25 82,7 57,7 0,60 C TCF070306CP TCF070304CC 5578829 TCF195R3SLR25MC 19,50 20,00 25 85,2 59,2 0,70 C TCF070306CP TCF070304CC 5578830 TCF200R3SLR25MC 20,00 20,50 25 86,7 60,7 0,70 C TCF070306CP TCF070304CC 5578832 TCF210R3SLR25MC 21,00 21,50 25 91,8 63,8 0,80 C TCF070306CP TCF070304CC 5578833 TCF220R3SLR25MC 22,00 22,50 25 95,8 66,8 1,00 C TCF070306CP TCF070304CC 5537824 TCF240R3SLR25MD 24,00 25,00 25 100,9 72,9 0,78 D TCF080308DP TCF090305DC 5537825 TCF250R3SLR32MD 25,00 26,00 32 105,9 75,9 0,91 D TCF080308DP TCF090305DC 5537826 TCF260R3SLR32MD 26,00 27,00 32 109,9 78,9 0,97 D TCF080308DP TCF090305DC 5537828 TCF270R3SLR32MD 27,00 28,00 32 114,0 82,0 1,15 D TCF080308DP TCF090305DC 5537829 TCF280R3SLR32MD 28,00 29,00 32 118,0 85,0 1,30 D TCF080308DP TCF090305DC 5537830 TCF290R3SLR32MD 29,00 30,00 32 122,0 88,0 1,45 D TCF080308DP TCF090305DC 5537944 TCF300R3SLR32ME 30,00 31,00 32 123,1 91,1 0,63 E TCF100408EP TCF120405EC 5537945 TCF310R3SLR32ME 31,00 32,00 32 127,1 94,1 0,72 E TCF100408EP TCF120405EC 5537946 TCF320R3SLR32ME 32,00 33,00 32 131,2 97,2 0,82 E TCF100408EP TCF120405EC 5537947 TCF330R3SLR40ME 33,00 34,00 40 136,2 100,2 0,95 E TCF100408EP TCF120405EC 5537948 TCF340R3SLR40ME 34,00 35,00 40 140,2 103,2 1,14 E TCF100408EP TCF120405EC 5537949 TCF350R3SLR40ME 35,00 36,00 40 144,2 106,2 1,30 E TCF100408EP TCF120405EC 5537950 TCF360R3SLR40ME 36,00 37,00 40 148,3 109,3 1,45 E TCF100408EP TCF120405EC 5578612 TCF390R3SLR40MF 39,00 40,00 40 160,4 118,4 1,36 F TCF120412FP TCF150406FC 5578613 TCF400R3SLR40MF 40,00 41,00 40 163,4 121,4 1,47 F TCF120412FP TCF150406FC 5578617 TCF440R3SLR40MF 44,00 45,00 40 179,6 133,6 2,10 F TCF120412FP TCF150406FC 5578618 TCF450R3SLR40MF 45,00 46,00 40 183,6 136,6 2,21 F TCF120412FP TCF150406FC 5578720 TCF500R3SLR40MG 50,00 51,00 40 197,8 151,8 1,87 G TCF150512GP TCF180508GC 5578727 TCF550R3SLR40MG 55,00 56,00 40 216,9 166,9 2,73 G TCF150512GP TCF180508GC Top Cut 4 Drill • Metric • 4 x D • Side Lock Shank 5537869 TCF120R4SLR20MA 12,00 12,50 20 67,4 48,4 0,41 A TCF040204AP TCF040203AC 5537872 TCF130R4SLR20MA 13,00 13,50 20 72,5 52,5 0,56 A TCF040204AP TCF040203AC 5577938 TCF140R4SLR25MB 14,00 14,50 25 76,5 56,5 0,42 B TCF050204BP TCF060203BC 5577940 TCF150R4SLR25MB 15,00 15,50 25 81,5 60,5 0,49 B TCF050204BP TCF060203BC 5577942 TCF160R4SLR25MB 16,00 16,50 25 86,6 64,6 0,60 B TCF050204BP TCF060203BC 5577943 TCF165R4SLR25MB 16,50 17,00 25 89,6 66,6 0,68 B TCF050204BP TCF060203BC 5577944 TCF170R4SLR25MB 17,00 17,50 25 91,6 68,6 0,74 B TCF050204BP TCF060203BC 5577945 TCF175R4SLR25MB 17,50 18,00 25 94,6 70,6 0,79 B TCF050204BP TCF060203BC 5577946 TCF180R4SLR25MB 18,00 18,50 25 96,6 72,6 0,86 B TCF050204BP TCF060203BC 5577947 TCF185R4SLR25MB 18,50 19,00 25 99,7 74,7 0,83 B TCF050204BP TCF060203BC 5578836 TCF190R4SLR25MC 19,00 19,50 25 101,7 76,7 0,60 C TCF070306CP TCF070304CC 5578837 TCF195R4SLR25MC 19,50 20,00 25 104,7 78,7 0,70 C TCF070306CP TCF070304CC 5578838 TCF200R4SLR25MC 20,00 20,50 25 106,7 80,7 0,70 C TCF070306CP TCF070304CC 5578840 TCF210R4SLR25MC 21,00 21,50 25 112,8 84,8 0,80 C TCF070306CP TCF070304CC 5578841 TCF220R4SLR25MC 22,00 22,50 25 117,8 88,8 1,00 C TCF070306CP TCF070304CC 5537831 TCF240R4SLR25MD 24,00 25,00 25 124,9 96,9 0,78 D TCF080308DP TCF090305DC 5537832 TCF250R4SLR32MD 25,00 26,00 32 130,9 100,9 0,86 D TCF080308DP TCF090305DC 5537833 TCF260R4SLR32MD 26,00 27,00 32 135,9 104,9 0,97 D TCF080308DP TCF090305DC 5537835 TCF270R4SLR32MD 27,00 28,00 32 141,0 109,0 1,15 D TCF080308DP TCF090305DC 5537836 TCF280R4SLR32MD 28,00 29,00 32 146,0 113,0 1,30 D TCF080308DP TCF090305DC 5537837 TCF290R4SLR32MD 29,00 30,00 32 151,0 117,0 1,45 D TCF080308DP TCF090305DC 5537951 TCF300R4SLR32ME 30,00 31,00 32 153,1 121,1 0,63 E TCF100408EP TCF120405EC 5537952 TCF310R4SLR32ME 31,00 32,00 32 158,1 125,1 0,72 E TCF100408EP TCF120405EC 5537953 TCF320R4SLR32ME 32,00 33,00 32 163,2 129,2 0,82 E TCF100408EP TCF120405EC 5537954 TCF330R4SLR40ME 33,00 34,00 40 165,2 133,2 0,95 E TCF100408EP TCF120405EC 5537955 TCF340R4SLR40ME 34,00 35,00 40 174,2 137,2 1,14 E TCF100408EP TCF120405EC 5537956 TCF350R4SLR40ME 35,00 36,00 40 179,2 141,2 1,30 E TCF100408EP TCF120405EC 5537957 TCF360R4SLR40ME 36,00 37,00 40 184,3 145,3 1,45 E TCF100408EP TCF120405EC 5578622 TCF390R4SLR40MF 39,00 40,00 40 200,8 156,0 1,36 F TCF120412FP TCF150406FC 5578623 TCF400R4SLR40MF 40,00 41,00 40 205,1 160,0 1,47 F TCF120412FP TCF150406FC 5578627 TCF440R4SLR40MF 44,00 45,00 40 222,4 176,0 2,10 F TCF120412FP TCF150406FC 5578628 TCF450R4SLR40MF 45,00 46,00 40 228,6 181,6 1,59 F TCF120412FP TCF150406FC 5578733 TCF500R4SLR40MG 50,00 51,00 40 247,8 201,8 1,87 G TCF150512GP TCF180508GC 5578739 TCF550R4SLR40MG 55,00 56,00 40 271,9 221,9 1,92 G TCF150512GP TCF180508GC (continued) widia.com 141 Holemaking
