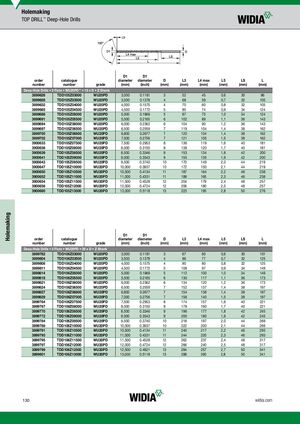

Каталог Widia all star 2019 - страница 132

Holemaking TOP DRILL™ Deep-Hole Drills D1 D1 order catalogue diameter diameter D L3 L4 max L5 LS L number number grade (mm) (inch) (mm) (mm) (mm) (mm) (mm) (mm) Deep-Hole Drills • 2 Flute • WU20PD™ • 15 x D • Z Shank 3899626 TDD105Z03000 WU20PD 3,000 0.1181 3 52 45 0,6 30 86 3899628 TDD105Z03500 WU20PD 3,500 0.1378 4 68 59 0,7 32 105 3899632 TDD105Z04000 WU20PD 4,000 0.1575 4 70 60 0,8 32 105 3899685 TDD105Z04500 WU20PD 4,500 0.1772 5 85 74 0,9 34 124 3899688 TDD105Z05000 WU20PD 5,000 0.1969 5 87 75 1,0 34 124 3899691 TDD105Z05500 WU20PD 5,500 0.2165 6 102 89 1,1 36 143 3899694 TDD105Z06000 WU20PD 6,000 0.2362 6 104 90 1,2 36 143 3899697 TDD105Z06500 WU20PD 6,500 0.2559 7 119 104 1,4 38 162 3899700 TDD105Z06800 WU20PD 6,800 0.2677 7 120 104 1,4 38 162 3899702 TDD105Z07000 WU20PD 7,000 0.2756 7 121 105 1,5 38 162 3900633 TDD105Z07500 WU20PD 7,500 0.2953 8 136 119 1,6 40 181 3900636 TDD105Z08000 WU20PD 8,000 0.3150 8 138 120 1,7 40 181 3900639 TDD105Z08500 WU20PD 8,500 0.3346 9 153 134 1,8 42 200 3900641 TDD105Z09000 WU20PD 9,000 0.3543 9 155 135 1,9 42 200 3900643 TDD105Z09500 WU20PD 9,500 0.3740 10 170 149 2,0 44 219 3900647 TDD105Z10000 WU20PD 10,000 0.3937 10 172 150 2,1 44 219 3900650 TDD105Z10500 WU20PD 10,500 0.4134 11 187 164 2,2 46 238 3900652 TDD105Z11000 WU20PD 11,000 0.4331 11 189 165 2,3 46 238 3900654 TDD105Z11500 WU20PD 11,500 0.4528 12 204 179 2,4 48 257 3900656 TDD105Z12000 WU20PD 12,000 0.4724 12 206 180 2,5 48 257 3900660 TDD105Z13000 WU20PD 13,000 0.5118 13 223 195 2,8 50 276 D1 D1 order catalogue diameter diameter D L3 L4 max L5 LS L number number grade (mm) (inch) (mm) (mm) (mm) (mm) (mm) (mm) Deep-Hole Drills • 2 Flute • WU20PD • 20 x D • Z Shank 3899782 TDD106Z03000 WU20PD 3,000 0.1181 3 67 60 0,6 30 101 3899804 TDD106Z03500 WU20PD 3,500 0.1378 4 86 77 0,7 32 125 3899808 TDD106Z04000 WU20PD 4,000 0.1575 4 90 80 0,8 32 125 3899811 TDD106Z04500 WU20PD 4,500 0.1772 5 108 97 0,9 34 149 3899814 TDD106Z05000 WU20PD 5,000 0.1969 5 112 100 1,0 34 149 3899818 TDD106Z05500 WU20PD 5,500 0.2165 6 130 117 1,1 36 173 3899821 TDD106Z06000 WU20PD 6,000 0.2362 6 134 120 1,2 36 173 3899824 TDD106Z06500 WU20PD 6,500 0.2559 7 152 137 1,4 38 197 3899827 TDD106Z06800 WU20PD 6,800 0.2677 7 154 138 1,4 38 197 3899829 TDD106Z07000 WU20PD 7,000 0.2756 7 156 140 1,5 38 197 3899764 TDD106Z07500 WU20PD 7,500 0.2953 8 174 157 1,6 40 221 3899767 TDD106Z08000 WU20PD 8,000 0.3150 8 178 160 1,7 40 221 3899770 TDD106Z08500 WU20PD 8,500 0.3346 9 196 177 1,8 42 245 3899772 TDD106Z09000 WU20PD 9,000 0.3543 9 200 180 1,9 42 245 3899784 TDD106Z09500 WU20PD 9,500 0.3740 10 218 197 2,0 44 269 3899788 TDD106Z10000 WU20PD 10,000 0.3937 10 222 200 2,1 44 269 3899791 TDD106Z10500 WU20PD 10,500 0.4134 11 240 217 2,2 46 293 3899793 TDD106Z11000 WU20PD 11,000 0.4331 11 244 220 2,3 46 293 3899795 TDD106Z11500 WU20PD 11,500 0.4528 12 262 237 2,4 48 317 3899797 TDD106Z12000 WU20PD 12,000 0.4724 12 266 240 2,5 48 317 3899799 TDD106Z12500 WU20PD 12,500 0.4921 13 284 257 2,7 50 341 3899801 TDD106Z13000 WU20PD 13,000 0.5118 13 288 260 2,8 50 341 130 widia.com Holemaking
