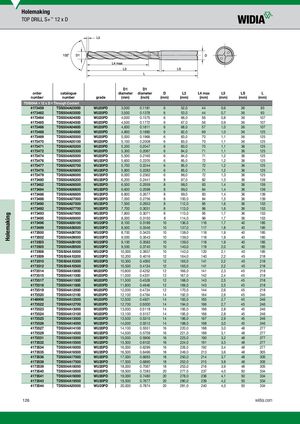

Каталог Widia all star 2019 - страница 128

Holemaking TOP DRILL S+™ 12 x D D1 D1 order catalogue diameter diameter D L3 L4 max L5 LS L number number grade (mm) (inch) (mm) (mm) (mm) (mm) (mm) (mm) TDS504A • 12 x D • Through Coolant 4173459 TDS504A03000 WU20PD 3,000 0.1181 6 52,0 44 0,6 36 93 4173462 TDS504A03500 WU20PD 3,500 0.1378 6 53,0 44 0,7 36 93 4173464 TDS504A04000 WU20PD 4,000 0.1575 6 66,0 56 0,8 36 107 4173465 TDS504A04500 WU20PD 4,500 0.1772 6 67,0 56 0,9 36 107 4173466 TDS504A04600 WU20PD 4,600 0.1811 6 68,0 57 1,0 36 107 4173468 TDS504A04800 WU20PD 4,800 0.1890 6 82,0 69 1,0 36 125 4173469 TDS504A05000 WU20PD 5,000 0.1969 6 83,0 70 1,1 36 125 4173470 TDS504A05100 WU20PD 5,100 0.2008 6 83,0 70 1,1 36 125 4173471 TDS504A05200 WU20PD 5,200 0.2047 6 83,0 70 1,1 36 125 4173472 TDS504A05300 WU20PD 5,300 0.2087 6 84,0 71 1,1 36 125 4173474 TDS504A05500 WU20PD 5,500 0.2165 6 84,0 71 1,2 36 125 4173476 TDS504A05600 WU20PD 5,600 0.2205 6 85,0 72 1,2 36 125 4173477 TDS504A05700 WU20PD 5,700 0.2244 6 85,0 72 1,2 36 125 4173478 TDS504A05800 WU20PD 5,800 0.2283 6 85,0 71 1,2 36 125 4173479 TDS504A06000 WU20PD 6,000 0.2362 6 86,0 72 1,3 36 125 4173480 TDS504A06200 WU20PD 6,200 0.2441 8 97,0 82 1,3 36 139 4173482 TDS504A06500 WU20PD 6,500 0.2559 8 98,0 83 1,4 36 139 4173484 TDS504A06600 WU20PD 6,600 0.2598 8 99,0 84 1,4 36 139 4173486 TDS504A06800 WU20PD 6,800 0.2677 8 99,0 83 1,4 36 139 4173488 TDS504A07000 WU20PD 7,000 0.2756 8 100,0 84 1,5 36 139 4173490 TDS504A07500 WU20PD 7,500 0.2953 8 112,0 95 1,6 36 153 4173492 TDS504A07700 WU20PD 7,700 0.3031 8 113,0 96 1,6 36 153 4173493 TDS504A07800 WU20PD 7,800 0.3071 8 113,0 95 1,7 36 153 4173495 TDS504A08000 WU20PD 8,000 0.3150 8 114,0 96 1,7 36 153 4173496 TDS504A08100 WU20PD 8,100 0.3189 10 136,0 116 1,7 40 185 4173499 TDS504A08500 WU20PD 8,500 0.3346 10 137,0 117 1,8 40 185 4173500 TDS504A08700 WU20PD 8,700 0.3425 10 138,0 118 1,9 40 185 4173502 TDS504A09000 WU20PD 9,000 0.3543 10 139,0 118 1,9 40 185 4173503 TDS504A09100 WU20PD 9,100 0.3583 10 139,0 118 1,9 40 185 4173505 TDS504A09500 WU20PD 9,500 0.3740 10 140,0 119 2,0 40 185 4173508 TDS504A10000 WU20PD 10,000 0.3937 10 142,0 120 2,1 40 185 4173509 TDS504A10200 WU20PD 10,200 0.4016 12 164,0 140 2,2 45 218 4173510 TDS504A10300 WU20PD 10,300 0.4055 12 165,0 141 2,2 45 218 4173512 TDS504A10500 WU20PD 10,500 0.4134 12 165,0 141 2,2 45 218 4173514 TDS504A10800 WU20PD 10,800 0.4252 12 166,0 141 2,3 45 218 4173515 TDS504A11000 WU20PD 11,000 0.4331 12 167,0 142 2,4 45 218 4173517 TDS504A11500 WU20PD 11,500 0.4528 12 168,0 143 2,5 45 218 4173518 TDS504A11800 WU20PD 11,800 0.4646 12 169,0 143 2,5 45 218 4173519 TDS504A12000 WU20PD 12,000 0.4724 12 170,0 144 2,6 45 218 4173520 TDS504A12100 WU20PD 12,100 0.4764 14 192,0 164 2,6 45 246 4148906 TDS504A12500 WU20PD 12,500 0.4921 14 193,0 165 2,7 45 246 4173522 TDS504A12700 WU20PD 12,700 0.5000 14 194,0 166 2,7 45 246 4173523 TDS504A13000 WU20PD 13,000 0.5118 14 195,0 166 2,8 45 246 4173524 TDS504A13100 WU20PD 13,100 0.5157 14 195,0 166 2,8 45 246 4173525 TDS504A13500 WU20PD 13,500 0.5315 14 196,0 167 2,9 45 246 4173526 TDS504A14000 WU20PD 14,000 0.5512 14 198,0 168 3,0 45 246 4173527 TDS504A14100 WU20PD 14,100 0.5551 16 220,0 188 3,0 48 277 4173529 TDS504A14500 WU20PD 14,500 0.5709 16 221,0 189 3,1 48 277 4173531 TDS504A15000 WU20PD 15,000 0.5906 16 223,0 190 3,2 48 277 4173532 TDS504A15500 WU20PD 15,500 0.6102 16 224,0 191 3,3 48 277 4173534 TDS504A16000 WU20PD 16,000 0.6299 16 226,0 192 3,4 48 277 4173535 TDS504A16500 WU20PD 16,500 0.6496 18 249,0 213 3,6 48 305 4173536 TDS504A17000 WU20PD 17,000 0.6693 18 250,0 214 3,7 48 305 4173538 TDS504A17500 WU20PD 17,500 0.6890 18 252,0 215 3,8 48 305 4173539 TDS504A18000 WU20PD 18,000 0.7087 18 253,0 216 3,9 48 305 4173540 TDS504A18500 WU20PD 18,500 0.7283 20 277,0 237 4,0 50 334 4173541 TDS504A19000 WU20PD 19,000 0.7480 20 278,0 238 4,1 50 334 4173543 TDS504A19500 WU20PD 19,500 0.7677 20 280,0 239 4,2 50 334 4173544 TDS504A20000 WU20PD 20,000 0.7874 20 281,0 240 4,3 50 334 126 widia.com Holemaking
