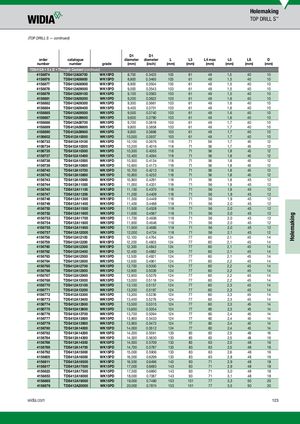

Holemaking TOP DRILL S™ (TOP DRILL S — continued) D1 D1 order catalogue diameter diameter L L3 L4 max L5 LS D number number grade (mm) (inch) (mm) (mm) (mm) (mm) (mm) (mm) TDS412A • 5 x D • Through Coolant (continued) 4158874 TDS412A08700 WK15PD 8,700 0.3425 103 61 49 1,5 40 10 4158876 TDS412A08800 WK15PD 8,800 0.3465 103 61 49 1,5 40 10 4158877 TDS412A08900 WK15PD 8,900 0.3504 103 61 49 1,5 40 10 4158878 TDS412A09000 WK15PD 9,000 0.3543 103 61 49 1,5 40 10 4158879 TDS412A09100 WK15PD 9,100 0.3583 103 61 49 1,5 40 10 4158881 TDS412A09200 WK15PD 9,200 0.3622 103 61 49 1,6 40 10 4158882 TDS412A09300 WK15PD 9,300 0.3661 103 61 49 1,6 40 10 4158884 TDS412A09400 WK15PD 9,400 0.3701 103 61 49 1,6 40 10 4158885 TDS412A09500 WK15PD 9,500 0.3740 103 61 49 1,6 40 10 4158887 TDS412A09600 WK15PD 9,600 0.3780 103 61 49 1,6 40 10 4158888 TDS412A09700 WK15PD 9,700 0.3819 103 61 49 1,7 40 10 4158889 TDS412A09800 WK15PD 9,800 0.3858 103 61 49 1,7 40 10 4158890 TDS412A09900 WK15PD 9,900 0.3898 103 61 49 1,7 40 10 4156602 TDS412A10000 WK15PD 10,000 0.3937 103 61 49 1,7 40 10 4156733 TDS412A10100 WK15PD 10,100 0.3976 118 71 56 1,7 45 12 4156734 TDS412A10200 WK15PD 10,200 0.4016 118 71 56 1,7 45 12 4156735 TDS412A10300 WK15PD 10,300 0.4055 118 71 56 1,8 45 12 4156737 TDS412A10400 WK15PD 10,400 0.4094 118 71 56 1,8 45 12 4156738 TDS412A10500 WK15PD 10,500 0.4134 118 71 56 1,8 45 12 4156739 TDS412A10600 WK15PD 10,600 0.4173 118 71 56 1,8 45 12 4156740 TDS412A10700 WK15PD 10,700 0.4213 118 71 56 1,8 45 12 4156742 TDS412A10800 WK15PD 10,800 0.4252 118 71 56 1,8 45 12 4156743 TDS412A10900 WK15PD 10,900 0.4291 118 71 56 1,9 45 12 4156744 TDS412A11000 WK15PD 11,000 0.4331 118 71 56 1,9 45 12 4156745 TDS412A11100 WK15PD 11,100 0.4370 118 71 56 1,9 45 12 4156747 TDS412A11200 WK15PD 11,200 0.4409 118 71 56 1,9 45 12 4156748 TDS412A11300 WK15PD 11,300 0.4449 118 71 56 1,9 45 12 4156749 TDS412A11400 WK15PD 11,400 0.4488 118 71 56 2,0 45 12 4156750 TDS412A11500 WK15PD 11,500 0.4528 118 71 56 2,0 45 12 4156752 TDS412A11600 WK15PD 11,600 0.4567 118 71 56 2,0 45 12 4156753 TDS412A11700 WK15PD 11,700 0.4606 118 71 56 2,0 45 12 4156754 TDS412A11800 WK15PD 11,800 0.4646 118 71 56 2,0 45 12 4156755 TDS412A11900 WK15PD 11,900 0.4685 118 71 56 2,0 45 12 4156757 TDS412A12000 WK15PD 12,000 0.4724 118 71 56 2,1 45 12 4156758 TDS412A12100 WK15PD 12,100 0.4764 124 77 60 2,1 45 14 4156759 TDS412A12200 WK15PD 12,200 0.4803 124 77 60 2,1 45 14 4156760 TDS412A12300 WK15PD 12,300 0.4843 124 77 60 2,1 45 14 4156762 TDS412A12400 WK15PD 12,400 0.4882 124 77 60 2,1 45 14 4156763 TDS412A12500 WK15PD 12,500 0.4921 124 77 60 2,1 45 14 4156764 TDS412A12600 WK15PD 12,600 0.4961 124 77 60 2,2 45 14 4156765 TDS412A12700 WK15PD 12,700 0.5000 124 77 60 2,2 45 14 4156766 TDS412A12800 WK15PD 12,800 0.5039 124 77 60 2,2 45 14 4156767 TDS412A12900 WK15PD 12,900 0.5079 124 77 60 2,2 45 14 4156768 TDS412A13000 WK15PD 13,000 0.5118 124 77 60 2,2 45 14 4156770 TDS412A13100 WK15PD 13,100 0.5157 124 77 60 2,3 45 14 4156771 TDS412A13200 WK15PD 13,200 0.5197 124 77 60 2,3 45 14 4156772 TDS412A13300 WK15PD 13,300 0.5236 124 77 60 2,3 45 14 4156773 TDS412A13400 WK15PD 13,400 0.5276 124 77 60 2,3 45 14 4156774 TDS412A13500 WK15PD 13,500 0.5315 124 77 60 2,3 45 14 4156775 TDS412A13600 WK15PD 13,600 0.5354 124 77 60 2,3 45 14 4156776 TDS412A13700 WK15PD 13,700 0.5394 124 77 60 2,4 45 14 4156777 TDS412A13800 WK15PD 13,800 0.5433 124 77 60 2,4 45 14 4156779 TDS412A13900 WK15PD 13,900 0.5472 124 77 60 2,4 45 14 4156780 TDS412A14000 WK15PD 14,000 0.5512 124 77 60 2,4 45 14 4156782 TDS412A14200 WK15PD 14,200 0.5591 133 83 63 2,5 48 16 4156784 TDS412A14300 WK15PD 14,300 0.5630 133 83 63 2,5 48 16 4156786 TDS412A14500 WK15PD 14,500 0.5709 133 83 63 2,5 48 16 4156789 TDS412A14700 WK15PD 14,700 0.5787 133 83 63 2,5 48 16 4156792 TDS412A15000 WK15PD 15,000 0.5906 133 83 63 2,6 48 16 4156805 TDS412A16000 WK15PD 16,000 0.6299 133 83 63 2,8 48 16 4156811 TDS412A16500 WK15PD 16,500 0.6496 143 93 71 2,9 48 18 4156817 TDS412A17000 WK15PD 17,000 0.6693 143 93 71 2,9 48 18 4156823 TDS412A17500 WK15PD 17,500 0.6890 143 93 71 3,0 48 18 4156853 TDS412A18000 WK15PD 18,000 0.7087 143 93 71 3,1 48 18 4156865 TDS412A19000 WK15PD 19,000 0.7480 153 101 77 3,3 50 20 4156876 TDS412A20000 WK15PD 20,000 0.7874 153 101 77 3,5 50 20 widia.com 123 Holemaking
