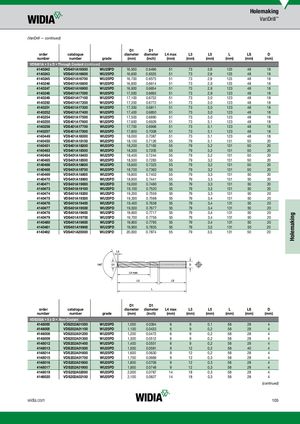

Holemaking VariDrill™ (VariDrill — continued) D1 D1 order catalogue diameter diameter L4 max L3 L5 L LS D number number grade (mm) (inch) (mm) (mm) (mm) (mm) (mm) (mm) VDS401A • 3 x D • Through Coolant (continued) 4140242 VDS401A16500 WU25PD 16,500 0.6496 51 73 2,9 123 48 18 4140243 VDS401A16600 WU25PD 16,600 0.6535 51 73 2,9 123 48 18 4140245 VDS401A16700 WU25PD 16,700 0.6575 51 73 2,9 123 48 18 4140246 VDS401A16800 WU25PD 16,800 0.6614 51 73 2,9 123 48 18 4140247 VDS401A16900 WU25PD 16,900 0.6654 51 73 2,9 123 48 18 4140248 VDS401A17000 WU25PD 17,000 0.6693 51 73 2,9 123 48 18 4140249 VDS401A17100 WU25PD 17,100 0.6732 51 73 3,0 123 48 18 4140250 VDS401A17200 WU25PD 17,200 0.6772 51 73 3,0 123 48 18 4140251 VDS401A17300 WU25PD 17,300 0.6811 51 73 3,0 123 48 18 4140252 VDS401A17400 WU25PD 17,400 0.6850 51 73 3,0 123 48 18 4140254 VDS401A17500 WU25PD 17,500 0.6890 51 73 3,0 123 48 18 4140255 VDS401A17600 WU25PD 17,600 0.6929 51 73 3,1 123 48 18 4140256 VDS401A17700 WU25PD 17,700 0.6969 51 73 3,1 123 48 18 4140257 VDS401A17800 WU25PD 17,800 0.7008 51 73 3,1 123 48 18 4140449 VDS401A18000 WU25PD 18,000 0.7087 51 73 3,1 123 48 18 4140450 VDS401A18100 WU25PD 18,100 0.7126 55 79 3,1 131 50 20 4140451 VDS401A18200 WU25PD 18,200 0.7165 55 79 3,2 131 50 20 4140463 VDS401A18300 WU25PD 18,300 0.7205 55 79 3,2 131 50 20 4140464 VDS401A18400 WU25PD 18,400 0.7244 55 79 3,2 131 50 20 4140465 VDS401A18500 WU25PD 18,500 0.7283 55 79 3,2 131 50 20 4140466 VDS401A18600 WU25PD 18,600 0.7323 55 79 3,2 131 50 20 4140468 VDS401A18700 WU25PD 18,700 0.7362 55 79 3,2 131 50 20 4140469 VDS401A18800 WU25PD 18,800 0.7402 55 79 3,3 131 50 20 4140470 VDS401A18900 WU25PD 18,900 0.7441 55 79 3,3 131 50 20 4140471 VDS401A19000 WU25PD 19,000 0.7480 55 79 3,3 131 50 20 4140473 VDS401A19100 WU25PD 19,100 0.7520 55 79 3,3 131 50 20 4140474 VDS401A19200 WU25PD 19,200 0.7559 55 79 3,3 131 50 20 4140475 VDS401A19300 WU25PD 19,300 0.7598 55 79 3,4 131 50 20 4140476 VDS401A19400 WU25PD 19,400 0.7638 55 79 3,4 131 50 20 4140477 VDS401A19500 WU25PD 19,500 0.7677 55 79 3,4 131 50 20 4140478 VDS401A19600 WU25PD 19,600 0.7717 55 79 3,4 131 50 20 4140479 VDS401A19700 WU25PD 19,700 0.7756 55 79 3,4 131 50 20 4140480 VDS401A19800 WU25PD 19,800 0.7795 55 79 3,4 131 50 20 4140481 VDS401A19900 WU25PD 19,900 0.7835 55 79 3,5 131 50 20 4140482 VDS401A20000 WU25PD 20,000 0.7874 55 79 3,5 131 50 20 D1 D1 order catalogue diameter diameter L4 max L3 L5 L LS D number number grade (mm) (inch) (mm) (mm) (mm) (mm) (mm) (mm) VDS202A • 5 x D • Non-Coolant 4148000 VDS202A01000 WU25PD 1,000 0.0394 6 9 0,1 58 28 4 4148005 VDS202A01100 WU25PD 1,100 0.0433 6 9 0,2 58 28 4 4148008 VDS202A01200 WU25PD 1,200 0.0472 6 9 0,2 58 28 4 4148009 VDS202A01300 WU25PD 1,300 0.0512 6 9 0,2 58 28 4 4148012 VDS202A01400 WU25PD 1,400 0.0551 6 9 0,2 58 28 4 4148013 VDS202A01500 WU25PD 1,500 0.0591 9 12 0,2 58 40 4 4148014 VDS202A01600 WU25PD 1,600 0.0630 9 12 0,2 58 28 4 4148015 VDS202A01700 WU25PD 1,700 0.0669 9 12 0,3 58 28 4 4148016 VDS202A01800 WU25PD 1,800 0.0709 9 12 0,3 58 28 4 4148017 VDS202A01900 WU25PD 1,900 0.0748 9 12 0,3 58 28 4 4148019 VDS202A02000 WU25PD 2,000 0.0787 14 18 0,3 58 28 4 4148020 VDS202A02100 WU25PD 2,100 0.0827 14 18 0,3 58 28 4 (continued) widia.com 105 Holemaking
