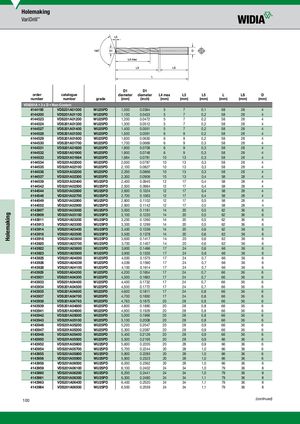

Holemaking VariDrill™ D1 D1 order catalogue diameter diameter L4 max L3 L5 L LS D number number grade (mm) (inch) (mm) (mm) (mm) (mm) (mm) (mm) VDS201A • 3 x D • Non-Coolant 4144195 VDS201A01000 WU25PD 1,000 0.0394 5 7 0,1 58 28 4 4144200 VDS201A01100 WU25PD 1,100 0.0433 5 7 0,2 58 28 4 4144523 VDS201A01200 WU25PD 1,200 0.0472 5 7 0,2 58 28 4 4144524 VDS201A01300 WU25PD 1,300 0.0512 5 7 0,2 58 28 4 4144527 VDS201A01400 WU25PD 1,400 0.0551 5 7 0,2 58 28 4 4144528 VDS201A01500 WU25PD 1,500 0.0591 6 9 0,2 58 28 4 4144529 VDS201A01600 WU25PD 1,600 0.0630 6 9 0,2 58 28 4 4144530 VDS201A01700 WU25PD 1,700 0.0669 6 9 0,3 58 28 4 4144531 VDS201A01800 WU25PD 1,800 0.0709 6 9 0,3 58 28 4 4144532 VDS201A01900 WU25PD 1,900 0.0748 6 9 0,3 58 28 4 4144533 VDS201A01984 WU25PD 1,984 0.0781 10 13 0,3 58 28 4 4144534 VDS201A02000 WU25PD 2,000 0.0787 10 13 0,3 58 28 4 4144535 VDS201A02100 WU25PD 2,100 0.0827 10 13 0,3 58 28 4 4144536 VDS201A02200 WU25PD 2,200 0.0866 10 13 0,3 58 28 4 4144537 VDS201A02300 WU25PD 2,300 0.0906 10 13 0,4 58 28 4 4144539 VDS201A02400 WU25PD 2,400 0.0945 12 17 0,4 58 28 4 4144542 VDS201A02500 WU25PD 2,500 0.0984 12 17 0,4 58 28 4 4144544 VDS201A02600 WU25PD 2,600 0.1024 12 17 0,4 58 28 4 4144546 VDS201A02700 WU25PD 2,700 0.1063 12 17 0,4 58 28 4 4144549 VDS201A02800 WU25PD 2,800 0.1102 12 17 0,5 58 28 4 4144552 VDS201A02900 WU25PD 2,900 0.1142 12 17 0,5 58 28 4 4143907 VDS201A03000 WU25PD 3,000 0.1181 14 20 0,5 62 36 6 4143909 VDS201A03100 WU25PD 3,100 0.1220 14 20 0,5 62 36 6 4143911 VDS201A03200 WU25PD 3,200 0.1260 14 20 0,5 62 36 6 4143913 VDS201A03300 WU25PD 3,300 0.1299 14 20 0,5 62 36 6 4143914 VDS201A03400 WU25PD 3,400 0.1339 14 20 0,6 62 36 6 4143916 VDS201A03500 WU25PD 3,500 0.1378 14 20 0,6 62 36 6 4143918 VDS201A03600 WU25PD 3,600 0.1417 14 20 0,6 62 36 6 4143920 VDS201A03700 WU25PD 3,700 0.1457 14 20 0,6 62 36 6 4143922 VDS201A03800 WU25PD 3,800 0.1496 17 24 0,6 66 36 6 4143923 VDS201A03900 WU25PD 3,900 0.1535 17 24 0,6 66 36 6 4143925 VDS201A04000 WU25PD 4,000 0.1575 17 24 0,7 66 36 6 4143926 VDS201A04039 WU25PD 4,039 0.1590 17 24 0,7 66 36 6 4143928 VDS201A04100 WU25PD 4,100 0.1614 17 24 0,7 66 36 6 4143929 VDS201A04200 WU25PD 4,200 0.1654 17 24 0,7 66 36 6 4143931 VDS201A04300 WU25PD 4,300 0.1693 17 24 0,7 66 36 6 4143933 VDS201A04400 WU25PD 4,400 0.1732 17 24 0,7 66 36 6 4143934 VDS201A04500 WU25PD 4,500 0.1772 17 24 0,7 66 36 6 4143935 VDS201A04600 WU25PD 4,600 0.1811 17 24 0,8 66 36 6 4143937 VDS201A04700 WU25PD 4,700 0.1850 17 24 0,8 66 36 6 4143938 VDS201A04763 WU25PD 4,763 0.1875 20 28 0,8 66 36 6 4143939 VDS201A04800 WU25PD 4,800 0.1890 20 28 0,8 66 36 6 4143941 VDS201A04900 WU25PD 4,900 0.1929 20 28 0,8 66 36 6 4143942 VDS201A05000 WU25PD 5,000 0.1969 20 28 0,8 66 36 6 4143943 VDS201A05100 WU25PD 5,100 0.2008 20 28 0,8 66 36 6 4143946 VDS201A05200 WU25PD 5,200 0.2047 20 28 0,9 66 36 6 4143947 VDS201A05300 WU25PD 5,300 0.2087 20 28 0,9 66 36 6 4143948 VDS201A05400 WU25PD 5,400 0.2126 20 28 0,9 66 36 6 4143950 VDS201A05500 WU25PD 5,500 0.2165 20 28 0,9 66 36 6 4143952 VDS201A05600 WU25PD 5,600 0.2205 20 28 0,9 66 36 6 4143954 VDS201A05700 WU25PD 5,700 0.2244 20 28 1,0 66 36 6 4143955 VDS201A05800 WU25PD 5,800 0.2283 20 28 1,0 66 36 6 4143956 VDS201A05900 WU25PD 5,900 0.2323 20 28 1,0 66 36 6 4143958 VDS201A06000 WU25PD 6,000 0.2362 20 28 1,0 66 36 6 4143959 VDS201A06100 WU25PD 6,100 0.2402 24 34 1,0 79 36 8 4143960 VDS201A06200 WU25PD 6,200 0.2441 24 34 1,0 79 36 8 4143961 VDS201A06300 WU25PD 6,300 0.2480 24 34 1,1 79 36 8 4143963 VDS201A06400 WU25PD 6,400 0.2520 24 34 1,1 79 36 8 4143964 VDS201A06500 WU25PD 6,500 0.2559 24 34 1,1 79 36 8 100 (continued) Holemaking
