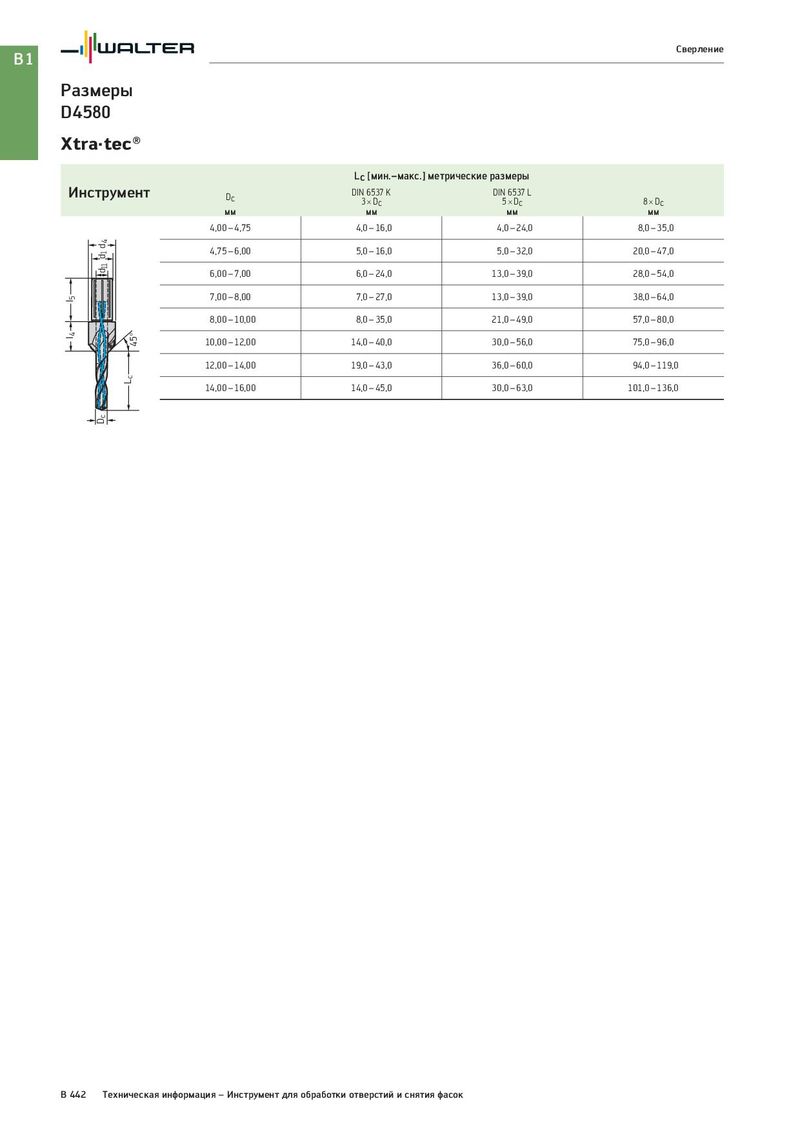

B1 Сверление Размеры D4580 Xtra·tec® Lc [мин.–макс.] метрические размеры Инструмент Dc DIN 6537 K DIN 6537 L 3 × Dc 5 × Dc 8 × Dc мм мм мм мм 4,00 – 4,75 4,0 – 16,0 4,0 – 24,0 8,0 – 35,0 d11 d1 d4 4,75 – 6,00 5,0 – 16,0 5,0 – 32,0 20,0 – 47,0 6,00 – 7,00 6,0 – 24,0 13,0 – 39,0 28,0 – 54,0 l5 7,00 – 8,00 7,0 – 27,0 13,0 – 39,0 38,0 – 64,0 8,00 – 10,00 8,0 – 35,0 21,0 – 49,0 57,0 – 80,0 l4 45° 10,00 – 12,00 14,0 – 40,0 30,0 – 56,0 75,0 – 96,0 12,00 – 14,00 19,0 – 43,0 36,0 – 60,0 94,0 – 119,0 Lc 14,00 – 16,00 14,0 – 45,0 30,0 – 63,0 101,0 – 136,0 Dc B 442 Техническая информация – Инструмент для обработки отверстий и снятия фасок
