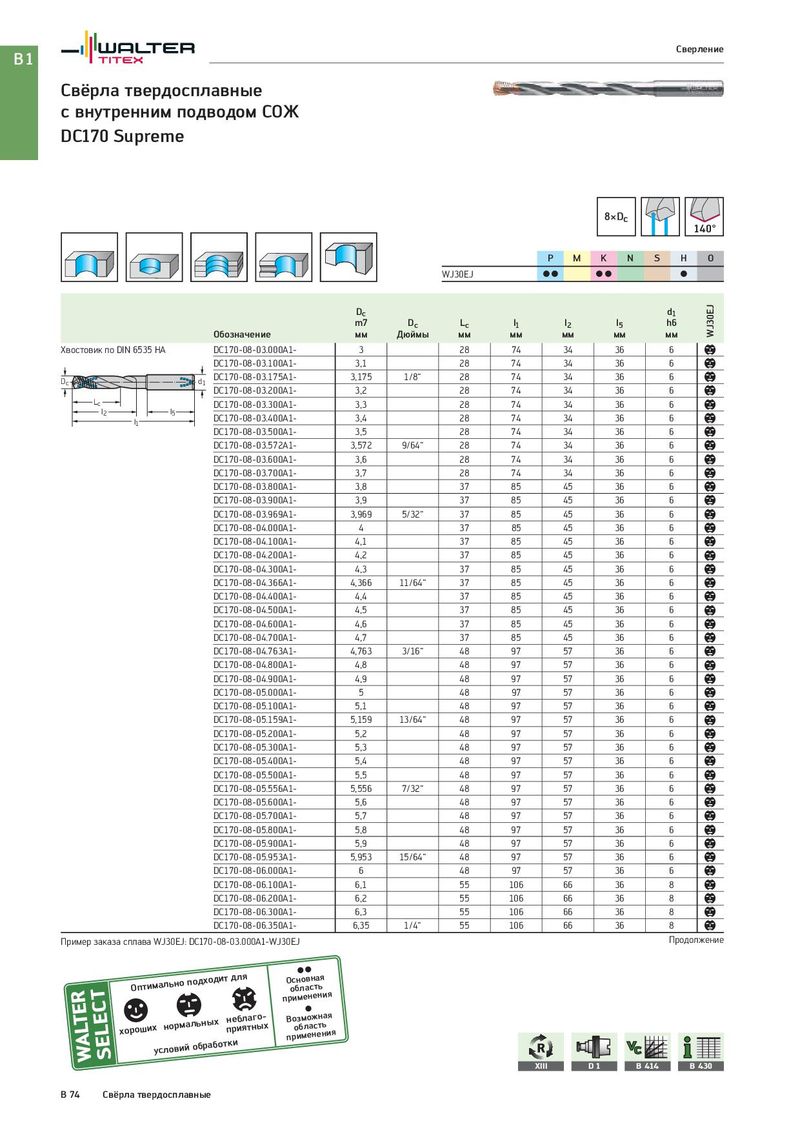

Общий каталог Walter 2017 - страница 588
Навигация
Каталог Walter обработка алюминия 2020
Каталог Walter новинки 2021.1
Каталог Walter новая продукция 2018
Каталог Walter новинки 2021.2
Брошюра Walter новинки 2022
с внутренним подводом СОЖ
DC170 Supreme
8×Dc
140°
| P | M | K | N | S | H | O | |
| WJ30EJ | C C | C C | C |
Dc d1
| m7 | D | L | l | l | l | h6 | ||||
| c | c | 1 | 2 | 5 | ||||||
| Обозначение | мм | Дюймы | мм | мм | мм | мм | мм | |||
| Хвостовик по DIN 6535 HA | DC170-08-03.000A1- | 3 | 28 | 74 | 34 | 36 | 6 | b | ||
| DC170-08-03.100A1- | 3,1 | 28 | 74 | 34 | 36 | 6 | b |
b
DC170-08-03.175A1- 3,175 1/8“ 28 74 34 36 6
Dc d1 b
| DC170-08-03.200A1- | 3,2 | 28 | 74 | 34 | 36 | 6 | ||
| L | DC170-08-03.300A1- | 3,3 | 28 | 74 | 34 | 36 | 6 | b |
c
l2 l5 b
DC170-08-03.400A1- 3,4 28 74 34 36 6
l1 b
| DC170-08-03.500A1- | 3,5 | 28 | 74 | 34 | 36 | 6 | ||
| DC170-08-03.572A1- | 3,572 | 9/64“ | 28 | 74 | 34 | 36 | 6 | b |
b
DC170-08-03.600A1- 3,6 28 74 34 36 6
b
| DC170-08-03.700A1- | 3,7 | 28 | 74 | 34 | 36 | 6 | |
| DC170-08-03.800A1- | 3,8 | 37 | 85 | 45 | 36 | 6 | b |
| DC170-08-03.900A1- | 3,9 | 37 | 85 | 45 | 36 | 6 | b |
b
| DC170-08-03.969A1- | 3,969 | 5/32“ | 37 | 85 | 45 | 36 | 6 | |
| DC170-08-04.000A1- | 4 | 37 | 85 | 45 | 36 | 6 | b | |
| DC170-08-04.100A1- | 4,1 | 37 | 85 | 45 | 36 | 6 | b |
b
DC170-08-04.200A1- 4,2 37 85 45 36 6
b
| DC170-08-04.300A1- | 4,3 | 37 | 85 | 45 | 36 | 6 | ||
| DC170-08-04.366A1- | 4,366 | 11/64“ | 37 | 85 | 45 | 36 | 6 | b |
b
DC170-08-04.400A1- 4,4 37 85 45 36 6
b
| DC170-08-04.500A1- | 4,5 | 37 | 85 | 45 | 36 | 6 | |
| DC170-08-04.600A1- | 4,6 | 37 | 85 | 45 | 36 | 6 | b |
b
DC170-08-04.700A1- 4,7 37 85 45 36 6
b
| DC170-08-04.763A1- | 4,763 | 3/16“ | 48 | 97 | 57 | 36 | 6 | |
| DC170-08-04.800A1- | 4,8 | 48 | 97 | 57 | 36 | 6 | b | |
| DC170-08-04.900A1- | 4,9 | 48 | 97 | 57 | 36 | 6 | b |
b
| DC170-08-05.000A1- | 5 | 48 | 97 | 57 | 36 | 6 | ||
| DC170-08-05.100A1- | 5,1 | 48 | 97 | 57 | 36 | 6 | b | |
| DC170-08-05.159A1- | 5,159 | 13/64“ | 48 | 97 | 57 | 36 | 6 | b |
b
DC170-08-05.200A1- 5,2 48 97 57 36 6
b
| DC170-08-05.300A1- | 5,3 | 48 | 97 | 57 | 36 | 6 | |
| DC170-08-05.400A1- | 5,4 | 48 | 97 | 57 | 36 | 6 | b |
b
DC170-08-05.500A1- 5,5 48 97 57 36 6
b
| DC170-08-05.556A1- | 5,556 | 7/32“ | 48 | 97 | 57 | 36 | 6 | |
| DC170-08-05.600A1- | 5,6 | 48 | 97 | 57 | 36 | 6 | b |
b
DC170-08-05.700A1- 5,7 48 97 57 36 6
b
| DC170-08-05.800A1- | 5,8 | 48 | 97 | 57 | 36 | 6 | ||
| DC170-08-05.900A1- | 5,9 | 48 | 97 | 57 | 36 | 6 | b | |
| DC170-08-05.953A1- | 5,953 | 15/64“ | 48 | 97 | 57 | 36 | 6 | b |
b
| DC170-08-06.000A1- | 6 | 48 | 97 | 57 | 36 | 6 | |
| DC170-08-06.100A1- | 6,1 | 55 | 106 | 66 | 36 | 8 | b |
| DC170-08-06.200A1- | 6,2 | 55 | 106 | 66 | 36 | 8 | b |
b
DC170-08-06.300A1- 6,3 55 106 66 36 8
b
DC170-08-06.350A1- 6,35 1/4“ 55 106 66 36 8
Пример заказа сплава WJ30EJ: DC170-08-03.000A1-WJ30EJ Продолжение
Основная Оптимально подходит для область применения неблаго- Возможная
